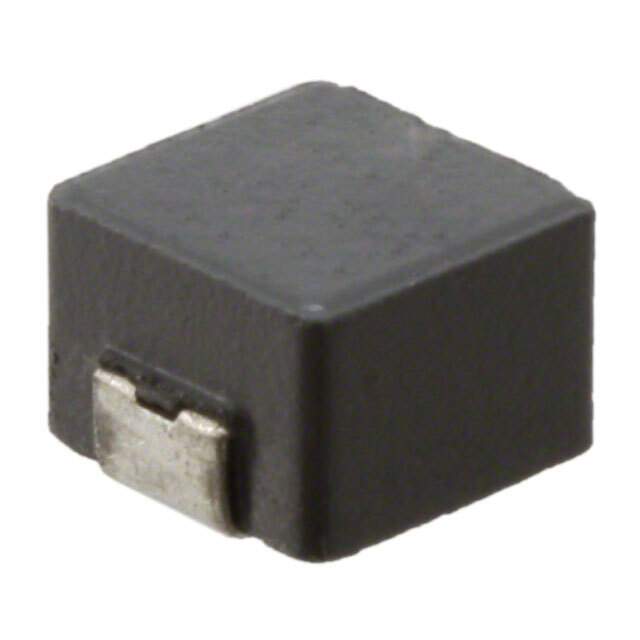

74437349150 Real Image
Same model may have multiple batches, images only for reference.

74437349150

Part No 74437349150
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 15UH 2.75A 92 MOHM SMD / WE-LHMI SMD Power Inductor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Type Molded
Material - Core Iron Powder
Inductance 15μH
Tolerance ±20%
Current Rating (Amps) 2.75A
Current - Saturation 5.5A
Shielding Shielded
DC Resistance (DCR) 92mOhm Max
Frequency - Self Resonant 10MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Supplier Device Package 7050
Dimension 0.299" L x 0.272" W (7.60mm x 6.90mm)
Height - Seated (Maximum) 0.197" (5.00mm)
Manufacturer Pack Quantity 800
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809105-74437349150
Ultra Librarian 3D Model Ultra Librarian 74437349150 CAD Model

Description

The 809105-74437349150 inductor from Würth Elektronik is a molded, shielded inductor.

  • Inductance: 15μH, Tolerance ±20%
  • Core Material: Iron Powder
  • DC Resistance (DCR): 92mOhm Max
  • Current Saturation: 5.5A
  • Self-Resonant Frequency: 10MHz
  • Package: 7050
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.299" L x 0.272" W (7.60mm x 6.90mm)
  • Maximum Seated Height: 0.197" (5.00mm)
  • Popularity: Medium
  • Supply and Demand: Limited
  • Manufacturer Pack Quantity: 800
  • MSL Level: 1 (Unlimited)
  • Current Rating: 2.75A
  • Inductance Frequency Test: 100kHz
