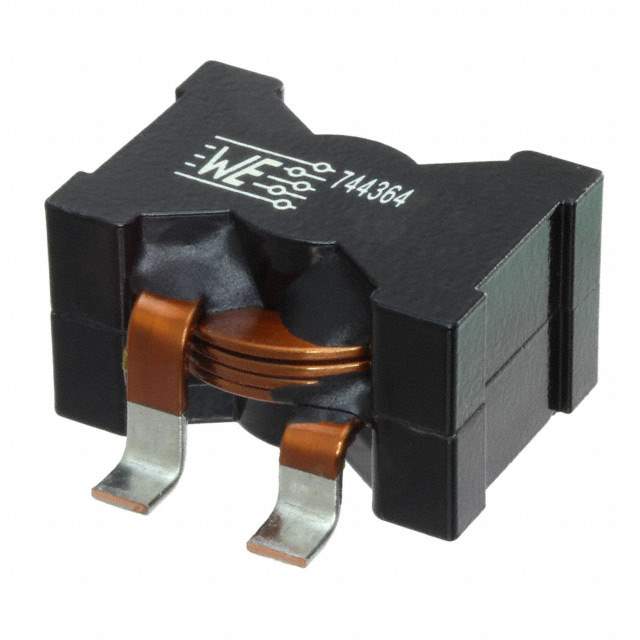

Same model may have multiple batches, images only for reference.

74436410680

Name: 74436410680
Brand: Wurth Electronics Inc
SKU: 1329280
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74436410680
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 6.8UH 36A 1.441MOHM SM / 6.8 µH Shielded Drum Core, Wirewound Inductor 36 A 1.441mOhm Max Nonstandard
Datasheet	74436410680 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Tray
Type	Drum Core, Wirewound
Material - Core	Manganese Zinc Ferrite (MnZn)
Inductance	6.8 µH
Tolerance	±15%
Current Rating (Amps)	36 A
Current - Saturation (Isat)	30A
Shielding	Shielded
DC Resistance (DCR)	1.441mOhm Max
Frequency - Self Resonant	17.03MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Supplier Device Package	2815
Size / Dimension	1.102" L x 0.764" W (28.00mm x 19.40mm)
Height - Seated (Max)	0.606" (15.40mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-11532
Standard Package	20
Win Source Part Number	1329280-74436410680
Ultra Librarian 3D Model	Ultra Librarian 74436410680 CAD Model

Alternative Products

Description

The 1329280-74436410680 is a fixed inductor from Würth Elektronik.

Packaging: Tray
Type: Drum core, wirewound
Shielding: Yes
Size: 1.102" L x 0.764" W (28.00mm x 19.40mm)
Inductance: 6.8 µH
Height: 0.606" (15.40mm) Max
Tolerance: ±15%
Core Material: Manganese zinc ferrite (MnZn)
Temperature Range: -40°C to 125°C
