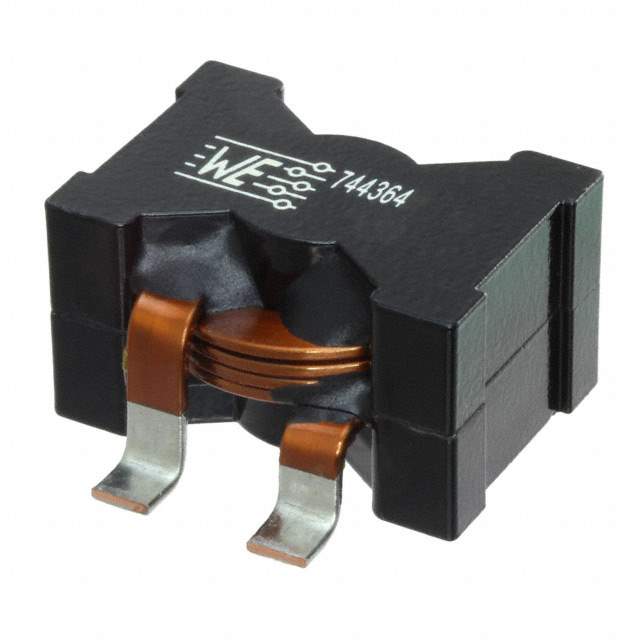

Same model may have multiple batches, images only for reference.

74436410220

Name: 74436410220
Brand: Wurth Electronics Inc
SKU: 857378
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	74436410220
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 36A 1.441MOHM SM
Datasheet	74436410220 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-HCF
Package	Tray
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Manganese Zinc Ferrite (MnZn)
Inductance	2.2 µH
Tolerance	±15%
Current Rating (Amps)	36 A
Current - Saturation (Isat)	88.5A
Shielding	Shielded
DC Resistance (DCR)	1.441mOhm Max
Frequency - Self Resonant	32.8MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	2815
Size / Dimension	1.102" L x 0.764" W (28.00mm x 19.40mm)
Height - Seated (Max)	0.606" (15.40mm)
Standard Package	20 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857378-74436410220
Ultra Librarian 3D Model	Ultra Librarian 74436410220 CAD Model

Alternative Products

Description

The WE-HCF is a drum core, wirewound inductor from Wurth Electronics Inc.

Series: WE-HCF
Size: 1.102" L x 0.764" W (28.00mm x 19.40mm)
Inductance: 2.2 µH
Package: Tray
Maximum Seated Height: 0.606" (15.40mm)
DC Resistance (DCR): 1.441mOhm Max
Temperature Range: -40°C to 125°C
Current Rating: 36 A
Saturation Current: 88.5A
Standard Package: 20 pcs
Product Status: Active
