Same model may have multiple batches, images only for reference.

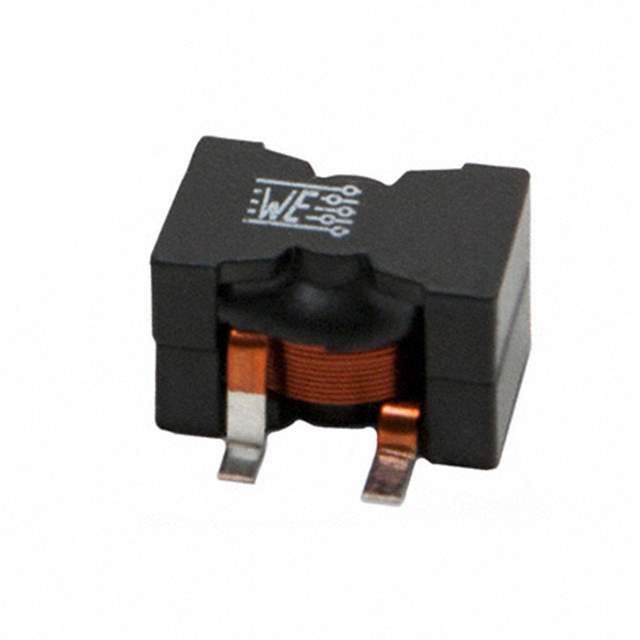

7443634700 Real Image
Same model may have multiple batches, images only for reference.

7443634700

Part No 7443634700
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 47UH 12A 12.2 MOHM SMD
Datasheet
7443634700 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-HCF
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Manganese Zinc Ferrite (MnZn)
Inductance 47 µH
Tolerance ±15%
Current Rating (Amps) 12 A
Current - Saturation (Isat) 8.5A
Shielding Shielded
DC Resistance (DCR) 12.2mOhm
Frequency - Self Resonant 10MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.858" L x 0.846" W (21.80mm x 21.50mm)
Height - Seated (Max) 0.571" (14.50mm)
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857376-7443634700
Ultra Librarian 3D Model Ultra Librarian 7443634700 CAD Model

Description

The WE-HCF series is a range of drum core, wirewound inductors designed for high current applications.

  • Series: WE-HCF
  • Part Number: 857376-7443634700
  • Size: 0.858" L x 0.846" W (21.80mm x 21.50mm)
  • Height: 0.571" (14.50mm)
  • Inductance: 47 µH
  • Tolerance: ±15%
  • Core Material: Manganese zinc ferrite (MnZn)
  • DC Resistance (DCR): 12.2mOhm
  • Current Rating: 12A
  • Temperature Range: -40°C to 125°C
