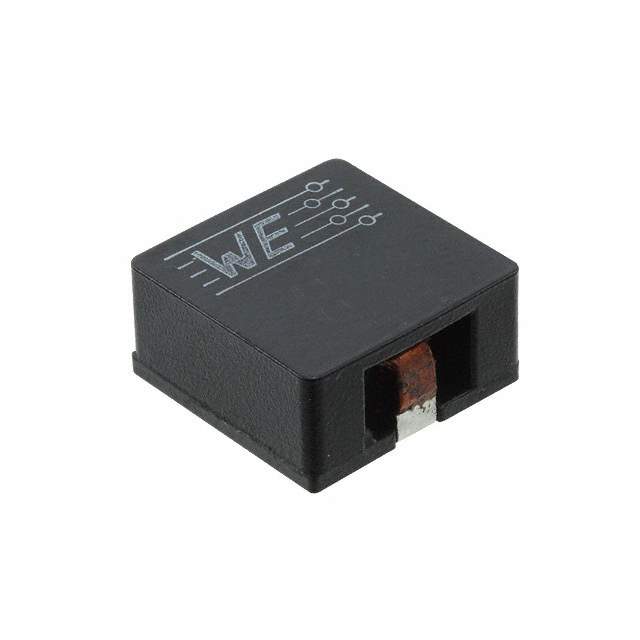

74435580680 Real Image
Same model may have multiple batches, images only for reference.

74435580680

Part No 74435580680
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 6.8UH 28.5A 2.1MOHM SM / 6.8 µH Shielded Drum Core, Wirewound Inductor 28.5 A 2.1mOhm Nonstandard
Datasheet
74435580680 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Manganese Zinc Ferrite (MnZn)
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 28.5 A
Current - Saturation (Isat) 31A
Shielding Shielded
DC Resistance (DCR) 2.1mOhm
Frequency - Self Resonant 18MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Supplier Device Package 2212
Size / Dimension 0.886" L x 0.866" W (22.50mm x 22.00mm)
Height - Seated (Max) 0.488" (12.40mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 732-4233-1,732-4233-2,732-4233-6
Standard Package 120
Win Source Part Number 1328966-74435580680
Ultra Librarian 3D Model Ultra Librarian 74435580680 CAD Model

Description

The Würth Elektronik 1328966-74435580680 is a fixed inductor with a drum core, wirewound type and a shielding feature.

  • Manufacturer: Würth Elektronik
  • Type: Drum Core, Wirewound
  • Shielding: Yes
  • Inductance: 6.8μH
  • Tolerance: ±20%
  • DC Resistance (DCR): 2.1mOhm
  • Current Rating: 28.5A
  • Temperature Range: -40°C to 125°C
  • AEC-Q200 Rated: Yes
  • REACH: Unaffected
  • HTSUS: 8504.50.8000
  • Category: Inductors, Coils, and Chokes
