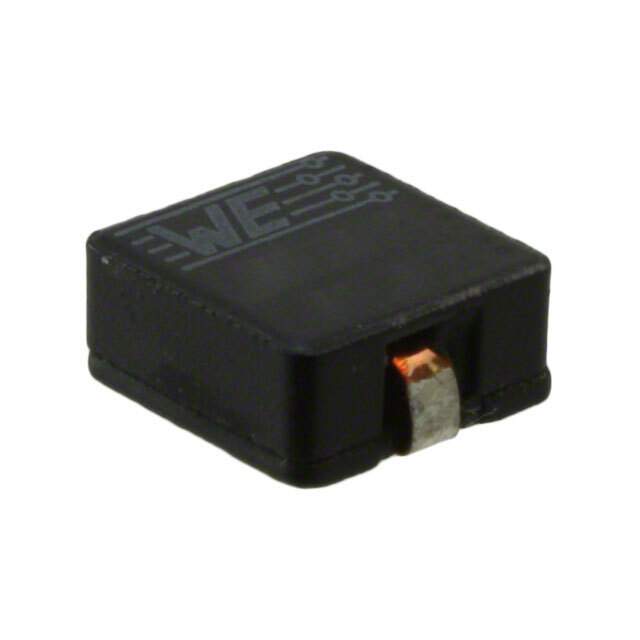

7443251600 Real Image
Same model may have multiple batches, images only for reference.

7443251600

Part No 7443251600
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 16UH 5A 34.5 MOHM SMD
Datasheet
7443251600 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-HCI
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 16 µH
Tolerance ±20%
Current Rating (Amps) 5 A
Current - Saturation (Isat) 6.5A
Shielding Shielded
DC Resistance (DCR) 34.5mOhm
Frequency - Self Resonant 18MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 1050
Size / Dimension 0.413" L x 0.402" W (10.50mm x 10.20mm)
Height - Seated (Max) 0.197" (5.00mm)
Standard Package 700 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857340-7443251600
Ultra Librarian 3D Model Ultra Librarian 7443251600 CAD Model

Description

The WE-HCI series is a wirewound type of fixed inductor offered by Wurth Electronics Inc.

  • Size: 0.413" L x 0.402" W (10.50mm x 10.20mm)
  • Height: 0.197" (5.00mm)
  • Inductance: 16 µH ±20%
  • Shielded: Yes
  • Mounting Type: Surface Mount
  • DC Resistance (DCR): 34.5mOhm
  • Current Rating: 5 A
  • Operating Temperature: -40°C to 150°C
  • AEC-Q200 Rated: Yes
