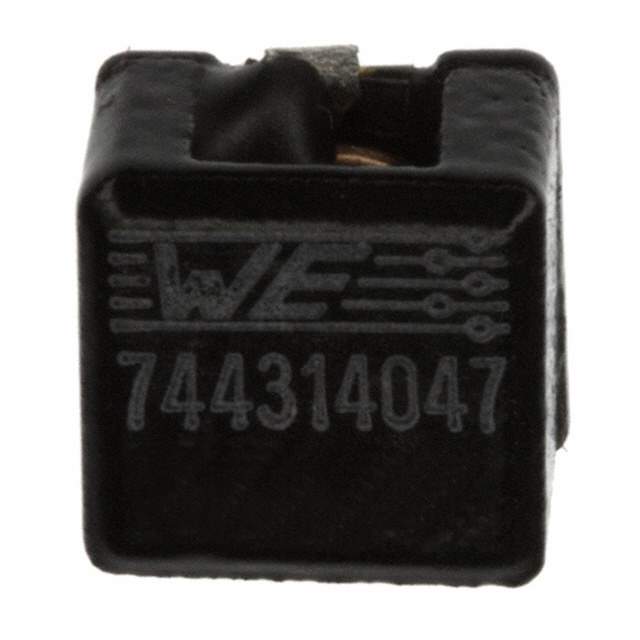

744314047 Real Image
Same model may have multiple batches, images only for reference.

744314047

Part No 744314047
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 470NH 18A 1.35MOHM SMD
Datasheet
744314047 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-HCI
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 18 A
Current - Saturation (Isat) 20A
Shielding Shielded
DC Resistance (DCR) 1.35mOhm
Frequency - Self Resonant 235MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 7050
Size / Dimension 0.276" L x 0.272" W (7.00mm x 6.90mm)
Height - Seated (Max) 0.197" (5.00mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857334-744314047
Ultra Librarian 3D Model Ultra Librarian 744314047 CAD Model

Description

The 857334-744314047 is a fixed inductor from the WE-HCI series by Wurth Electronics Inc.

  • Type: Wirewound
  • Shielded: Yes
  • Package: Tape and reel
  • Size: 0.276" L x 0.272" W (7.00mm x 6.90mm)
  • Inductance: 470 nH
  • Height: 0.197" (5.00mm) (Maximum)
  • Tolerance: ±20%
  • DC Resistance (DCR): 1.35mOhm
  • Operating Temperature: -40°C to 150°C
  • Current Rating: 18A
  • Saturation Current: 20A
  • Product Status: Active
  • REACH Status: Unaffected
