Same model may have multiple batches, images only for reference.

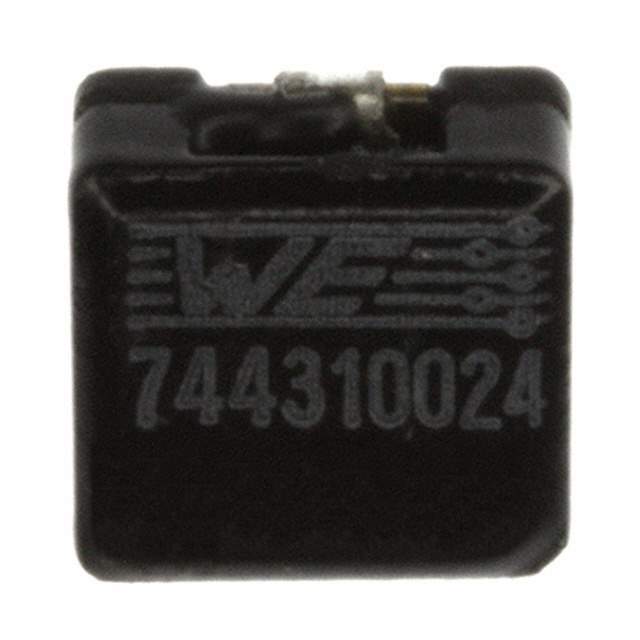

744310024 Real Image
Same model may have multiple batches, images only for reference.

744310024

Part No 744310024
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 240NH 18A 1.8 MOHM SMD
Datasheet
744310024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-HCI
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 240 nH
Tolerance ±20%
Current Rating (Amps) 18 A
Current - Saturation (Isat) 40A
Shielding Shielded
DC Resistance (DCR) 1.8mOhm
Frequency - Self Resonant 220MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 7030
Size / Dimension 0.276" L x 0.272" W (7.00mm x 6.90mm)
Height - Seated (Max) 0.130" (3.30mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857330-744310024
Ultra Librarian 3D Model Ultra Librarian 744310024 CAD Model

Description

The WE-HCI series from Wurth Electronics Inc is a shielded wirewound inductor.

  • Size: 0.276" L x 0.272" W (7.00mm x 6.90mm)
  • Inductance: 240 nH
  • Height: 0.130" (3.30mm) (Maximum)
  • Mounting Type: Surface Mount
  • Package: Tape & reel
  • Tolerance: ±20%
  • DC Resistance (DCR): 1.8mOhm
  • Operating Temperature: -40°C to 150°C
  • Current Rating: 18 A
  • Saturation Current: 40A
