Same model may have multiple batches, images only for reference.

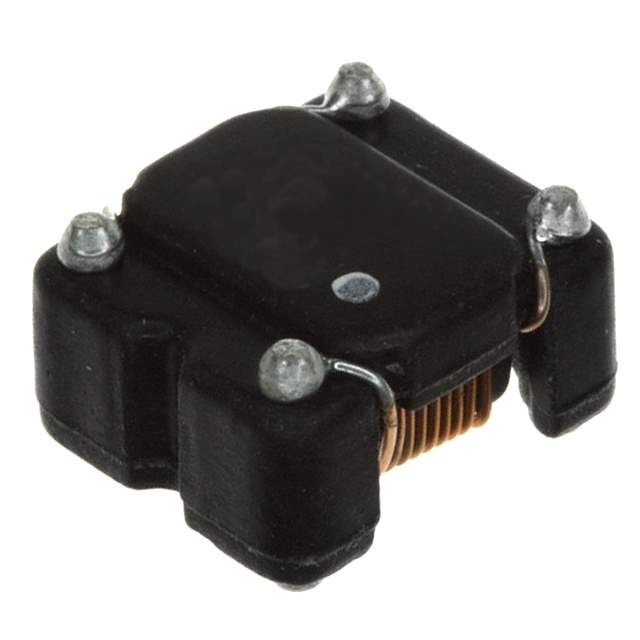

744272392 Real Image
Same model may have multiple batches, images only for reference.

744272392

Part No 744272392
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description COMMON MODE SMD LINE FILTER WE-SL5 | CMC 3.9MH 520MA 2LN 9.6 KOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Wurth Electronics Inc.
Packaging Reel
Filter Type Signal Line
Number of Lines 2
Impedance at Frequency 9.6 kOhms at 3MHz
Inductance at Frequency 3.9mH at 100kHz
Current Rating (Maximum) 520mA
DC Resistance (DCR) (Maximum) 540mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Parts Dimension 0.394" L x 0.343" W (10.00mm x 8.70mm)
Height (Maximum) 0.256" (6.50mm)
Manufacturer Package Horizontal, 4 PC Pad
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129931-744272392
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 744272392 CAD Model

Description

The Wurth Electronics Inc. filter is a high-quality electronic component used in various electronic devices.

  • Impedance: 9.6 kOhms @ 3MHz
  • Inductance: 3.9mH @ 100kHz
  • Filter Type: signal line filter
  • Package Form: reel
  • Units per Package: one
  • Mounting Style: SMD
  • Package: horizontal with 4 PC pad
  • Category: filters
  • Popularity: medium
  • Ideal for: electronic devices that require noise reduction
