Same model may have multiple batches, images only for reference.

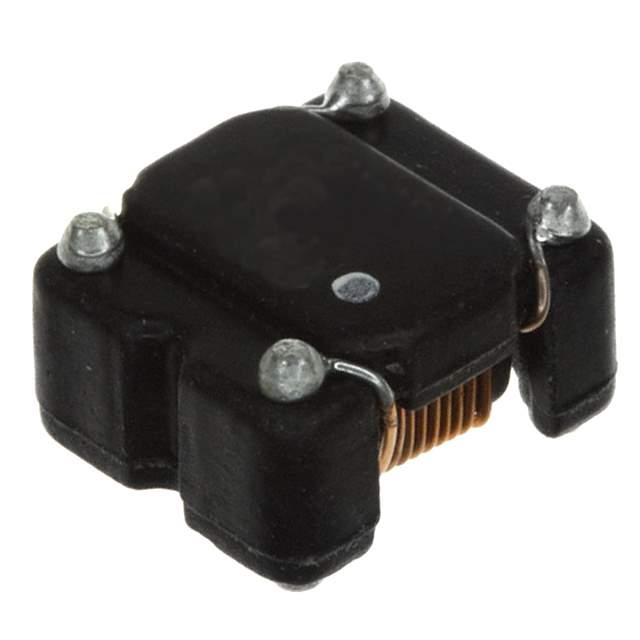

744272121 Real Image
Same model may have multiple batches, images only for reference.

744272121

Part No 744272121
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description COMMON MODE SMD LINE FILTER WE-SL5 | CMC 120UH 2.5A 2LN 460 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Wurth Electronics Inc.
Packaging Reel
Filter Type Power, Signal Line
Number of Lines 2
Impedance at Frequency 460 Ohms at 30MHz
Inductance at Frequency 120μH at 100kHz
Current Rating (Maximum) 2.5A
DC Resistance (DCR) (Maximum) 25mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Parts Dimension 0.394" L x 0.343" W (10.00mm x 8.70mm)
Height (Maximum) 0.256" (6.50mm)
Manufacturer Package Horizontal, 4 PC Pad
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129929-744272121
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 744272121 CAD Model

Description

The Wurth Electronics Inc. filter is a power and signal line filter.

  • Maximum Current Rating: 2.5A
  • DC Resistance (DCR): 25mOhm
  • Voltage Rating: 80V DC
  • Mounting Style: Horizontal, 4 PC pad
  • Height: 0.256" (6.50mm)
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Impedance: 460 Ohms @ 30MHz
  • Inductance: 120μH @ 100kHz
  • Temperature Range: -40°C to 125°C
  • Packaging: Reel
  • Quantity: 1
