Same model may have multiple batches, images only for reference.

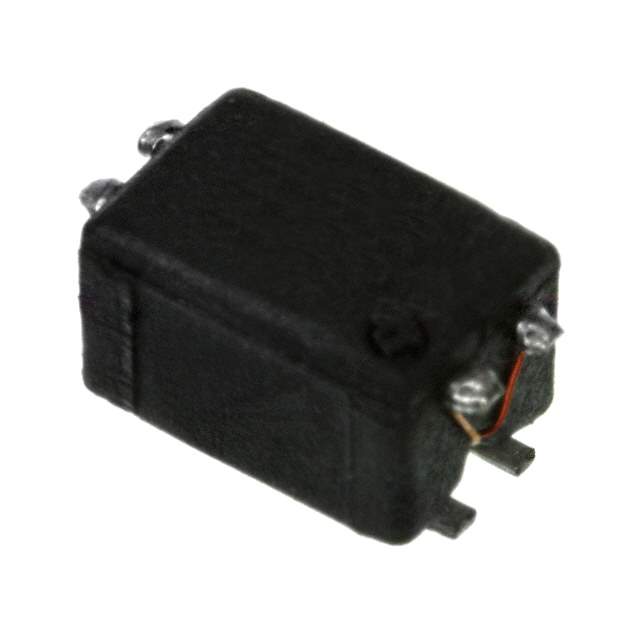

744242220 Real Image
Same model may have multiple batches, images only for reference.

744242220

Part No 744242220
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description COMMON MODE SMD LINE FILTER WE-SLM | CMC 22UH 300MA 2LN 1.5 KOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Wurth Electronics Inc.
Packaging Reel
Filter Type Signal Line
Number of Lines 2
Impedance at Frequency 1.5 kOhms at 65MHz
Inductance at Frequency 22μH at 100kHz
Current Rating (Maximum) 300mA
DC Resistance (DCR) (Maximum) 230mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Parts Dimension 0.236" L x 0.130" W (6.00mm x 3.30mm)
Height (Maximum) 0.138" (3.50mm)
Manufacturer Package Horizontal, 4 Flat Lead
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129925-744242220
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 744242220 CAD Model

Description

The Wurth Electronics Inc. 744242220 is a signal line filter with two lines and an impedance of 1.5 kOhms @ 65MHz.

  • Manufacturer: Wurth Electronics Inc.
  • Number of Lines: 2
  • Impedance: 1.5 kOhms @ 65MHz
  • Maximum Current: 300mA
  • Maximum DC Resistance: 230mOhm
  • Package: Horizontal, 4 flat lead
  • Height: 0.138" (3.50mm)
  • Suitable for: Filters
  • Popularity: Medium
  • Operating Temperature Range: -40°C to 125°C
