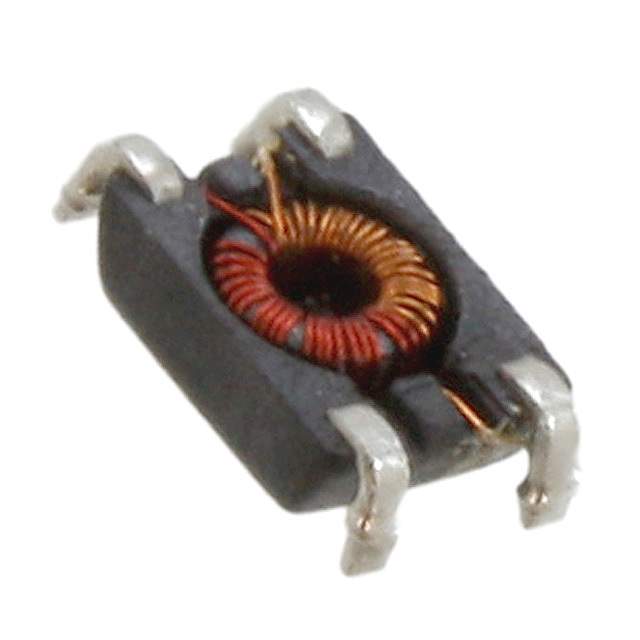

744212100 Real Image
Same model may have multiple batches, images only for reference.

744212100

Part No 744212100
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description WE-SL1 SMD Common Mode Line Filter | CMC 10UH 300MA 2LN 1.2 KOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Wurth Electronics Inc.
Packaging Reel
Filter Type Signal Line
Number of Lines 2
Impedance at Frequency 1.2 kOhms at 135MHz
Inductance at Frequency 10μH at 100kHz
Current Rating (Maximum) 300mA
DC Resistance (DCR) (Maximum) 240mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 105°C
Mounting Style SMD
Parts Dimension 0.256" L x 0.142" W (6.50mm x 3.60mm)
Height (Maximum) 0.071" (1.80mm)
Manufacturer Package Horizontal, 4 J-Lead
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129906-744212100
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 744212100 CAD Model

Description

The Wurth Electronics Inc. 744212100 is a signal line filter that has a voltage rating of 80V and a current rating of 300mA.

  • Voltage Rating: 80V
  • Current Rating: 300mA
  • Temperature Range: -40°C to 105°C
  • DC Resistance (DCR): 240mOhm
  • Impedance: 1.2 kOhms @ 135MHz
  • Inductance: 10μH @ 100kHz
  • Package: Reel
  • Mounting Style: SMD
  • Lines: Two
  • Popularity: Medium
  • Supply and Demand: Balanced
