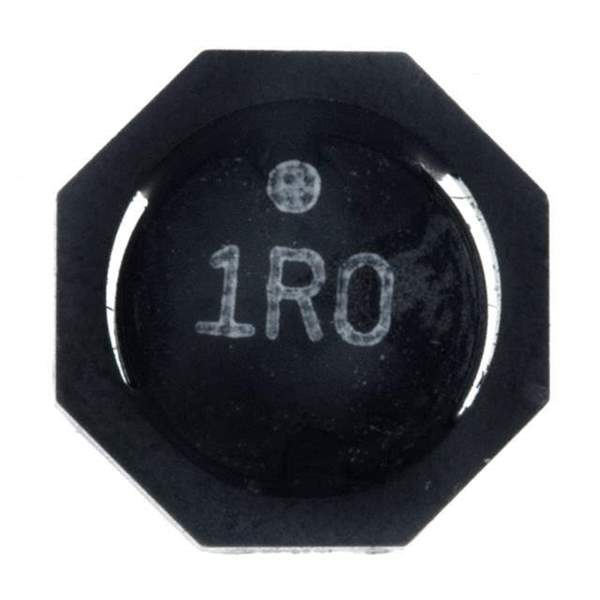

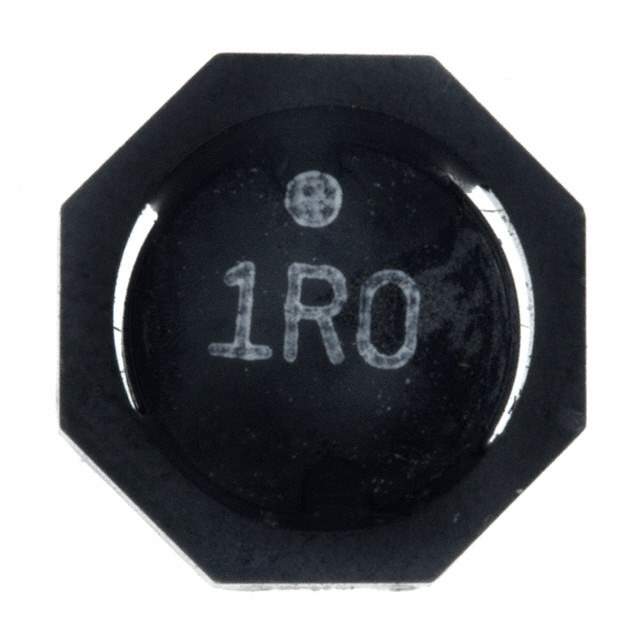

Same model may have multiple batches, images only for reference.

744065220

Name: 744065220
Brand: Wurth Electronics Inc
SKU: 857267
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744065220
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 22UH 1.8A 135 MOHM SMD
Datasheet	744065220 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	22 µH
Tolerance	±30%
Current Rating (Amps)	1.8 A
Current - Saturation (Isat)	1.9A
Shielding	Shielded
DC Resistance (DCR)	135mOhm Max
Frequency - Self Resonant	16MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.122" (3.10mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857267-744065220
Ultra Librarian 3D Model	Ultra Librarian 744065220 CAD Model

Alternative Products

Description

The WE-TPC series from Wurth Electronics Inc is a shielded fixed inductor with a drum core and wirewound construction.

Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height: 0.122" (3.10mm)
Inductance: 22 µH
Tolerance: ±30%
Maximum DC Resistance (DCR): 135mOhm
Current Rating: 1.8A
Mounting Type: Surface Mount
Package: Nonstandard
Operating Temperature: -40°C to 125°C
Product Status: Active
