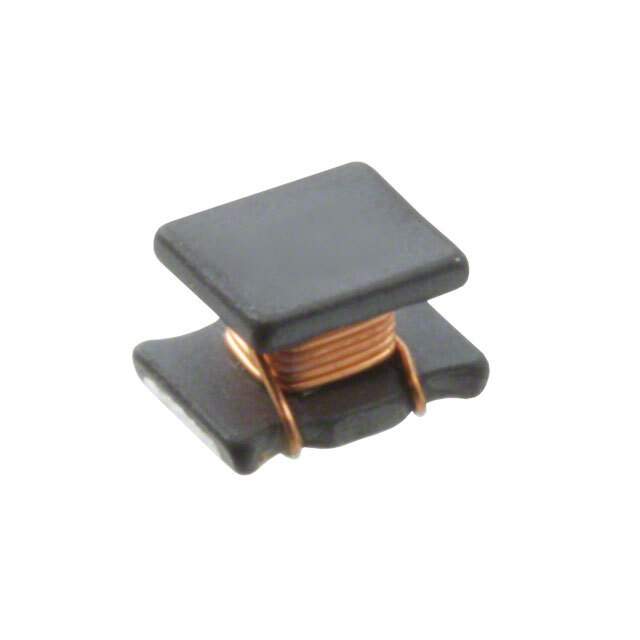

744045102 Real Image
Same model may have multiple batches, images only for reference.

744045102

Part No 744045102
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 1MH 70MA 30 OHM SMD / SMD HF-CHOKE WE-LQ
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 1mH
Tolerance ±10%
Current Rating (Amps) 70mA
Current - Saturation 160mA
Shielding Unshielded
DC Resistance (DCR) 30Ohm Max
Q at Freq 28 at 252kHz
Frequency - Self Resonant 2MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Style SMD
Manufacturer Package 1812 (4532 Metric)
Supplier Device Package 1812
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Maximum) 0.114" (2.90mm)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802601-744045102
Ultra Librarian 3D Model Ultra Librarian 744045102 CAD Model

Description

The Würth Elektronik wirewound inductor is a high-quality component.

  • Inductance: 1mH
  • Tolerance: ±10%
  • Material: Ferrite
  • Shielding: Unshielded
  • Current Saturation: 160mA
  • Self-Resonant Frequency: 2MHz
  • DC Resistance: 30Ω max
  • Package: 1812 (4532 Metric)
  • Operating Temperature: -40°C to 125°C
  • Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Packaging: Reel
  • Height: 0.114" (2.90mm)
