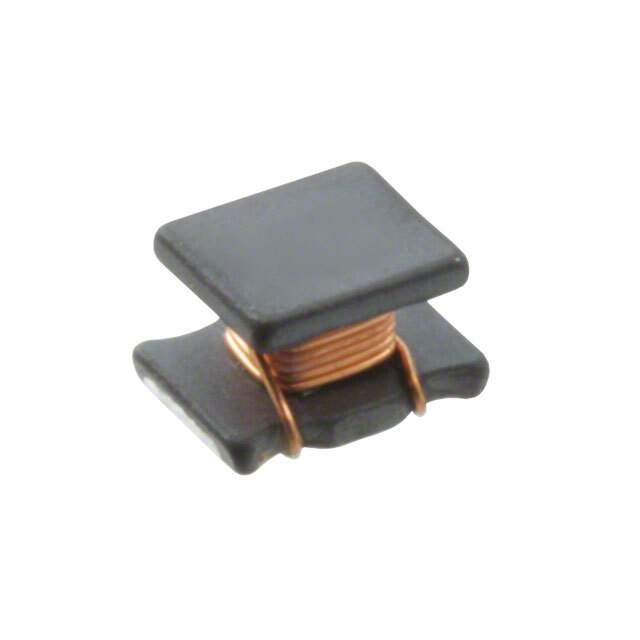

Same model may have multiple batches, images only for reference.

744045001

Name: 744045001
Brand: Wurth Electronics Inc
SKU: 1327590
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744045001
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 1UH 1.8A 80 MOHM SMD / 1 µH Unshielded Drum Core, Wirewound Inductor 1.8 A 80mOhm Max 1812 (4532 Metric)
Datasheet	744045001 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	1.8 A
Current - Saturation (Isat)	4.4A
Shielding	Unshielded
DC Resistance (DCR)	80mOhm Max
Q @ Freq	40 @ 1MHz
Frequency - Self Resonant	165MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting	Surface Mount
Case / Package	1812 (4532 Metric)
Supplier Device Package	1812
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.114" (2.90mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	732-3061-1,732-3061-2,732-3061-6
Standard Package	500
Win Source Part Number	1327590-744045001
Ultra Librarian 3D Model	Ultra Librarian 744045001 CAD Model

Alternative Products

Description

Würth Elektronik's 1327590-744045001 is a fixed inductor that is surface mounted.

Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
Inductance: 1µH
Tolerance: ±20%
Material: Ferrite
Q @ Freq: 40 @ 1MHz
Frequency Self-Resonant: 165MHz
DC Resistance (DCR): 80mOhm Max
Current Rating: 1.8A
Saturation Current: 4.4A
Compliance: REACH unaffected
ECCN: EAR99
Compliance: ROHS3 compliant
Temperature Range: -40°C to 125°C
