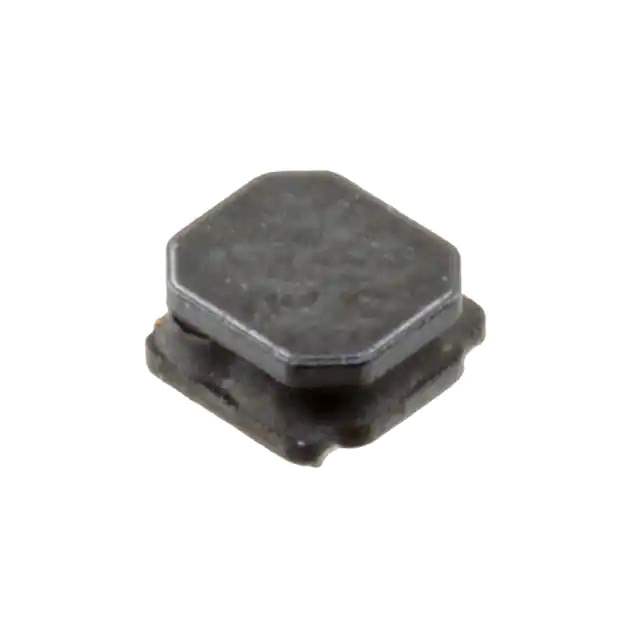

Same model may have multiple batches, images only for reference.

74404043102A

Name: 74404043102A
Brand: Wurth Electronics Inc
SKU: 857223
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74404043102A
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 1MH 160MA 10.342OHM SM
Datasheet	74404043102A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-LQS
Package	Tape & Reel
Product Status	Obsolete
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	1 mH
Tolerance	±20%
Current Rating (Amps)	160 mA
Current - Saturation (Isat)	90mA
Shielding	Semi-Shielded
DC Resistance (DCR)	10.342Ohm
Frequency - Self Resonant	3MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	SMD
Size / Dimension	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max)	0.098" (2.50mm)
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857223-74404043102A
Ultra Librarian 3D Model	Ultra Librarian 74404043102A CAD Model

Alternative Products

Description

The WE-LQS series from Wurth Electronics Inc is a drum core, wirewound inductor with a semi-shielded package.

Size: 0.157" L x 0.157" W (4.00mm x 4.00mm)
Inductance: 1 mH
Mounting: Surface mount
Maximum Seated Height: 0.098" (2.50mm)
Tolerance: ±20%
DC Resistance (DCR): 10.342Ohm
Core Material: Ferrite
Self-Resonant Frequency: 3MHz
Operating Temperature: -40°C to 125°C
Current Rating: 160mA
