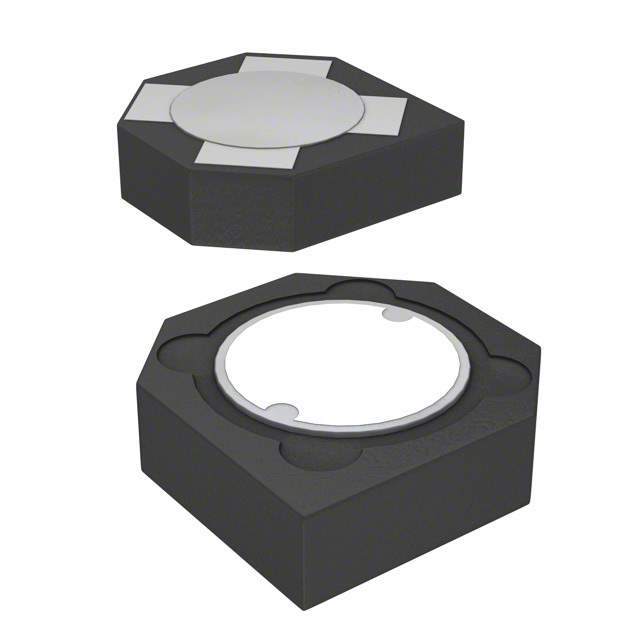

Same model may have multiple batches, images only for reference.

744030220

Name: 744030220
Brand: Wurth Electronics Inc
SKU: 857210
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744030220
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 22UH 220MA 1.45OHM SMD
Datasheet	744030220 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Obsolete
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	22 µH
Tolerance	±30%
Current Rating (Amps)	220 mA
Current - Saturation (Isat)	250mA
Shielding	Shielded
DC Resistance (DCR)	1.45Ohm Max
Frequency - Self Resonant	40MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.138" L x 0.130" W (3.50mm x 3.30mm)
Height - Seated (Max)	0.041" (1.05mm)
Standard Package	1,500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857210-744030220
Ultra Librarian 3D Model	Ultra Librarian 744030220 CAD Model

Alternative Products

Description

The WE-TPC is a fixed inductor from Wurth Electronics Inc.

Series: WE-TPC
Design: Drum Core, Wirewound
Shielded: Yes
Size: 0.138" L x 0.130" W (3.50mm x 3.30mm)
Height: 0.041" (1.05mm)
Inductance: 22 µH
Current Rating: 220mA
Package: Tape and Reel
Standard Package: 1,500 pcs
Tolerance: ±30%
DC Resistance (DCR): 1.45Ohm maximum
Operating Temperature Range: -40°C to 125°C
Status: Obsolete
