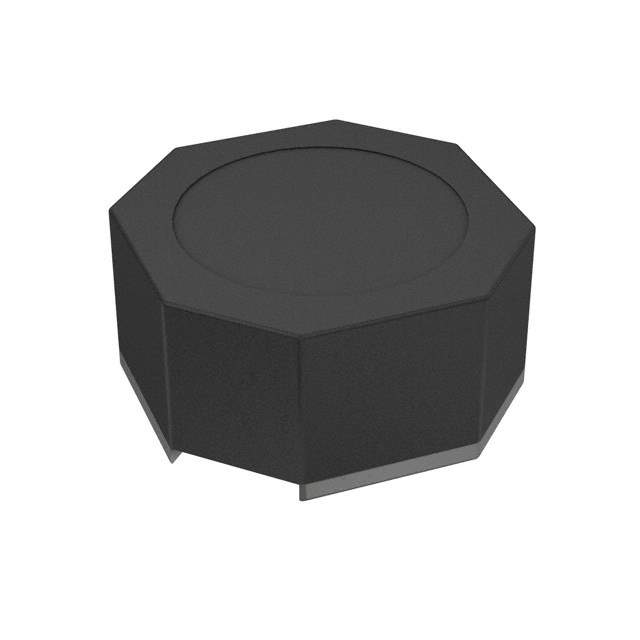

Same model may have multiple batches, images only for reference.

74402900082

Get a Quote

Part No	74402900082
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 820NH 2.4A 45 MOHM SMD / 820 nH Shielded Drum Core, Wirewound Inductor 2.4 A 45mOhm Max Nonstandard
Datasheet	74402900082 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	820 nH
Tolerance	±35%
Current Rating (Amps)	2.4 A
Current - Saturation (Isat)	1.8A
Shielding	Shielded
DC Resistance (DCR)	45mOhm Max
Q @ Freq	-
Frequency - Self Resonant	200MHz
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	2828
Size / Dimension	0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max)	0.059" (1.50mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	1,200 pcs
Win Source Part Number	1381090-74402900082
Ultra Librarian 3D Model	Ultra Librarian 74402900082 CAD Model

Alternative Products

Description

The 1381090-74402900082 is a drum core inductor from the WE-TPC series.

Series: WE-TPC
Inductor Type: Wirewound
Shielding: Shielded
Size / Dimension: 0.110" L x 0.110" W (2.80mm x 2.80mm)
Inductance: 820nH
Inductance Tolerance: ±35%
Temperature Range: -40°C to 125°C
Current Rating: 2.4A
Mounting Type: Surface Mount
Standard Package: 1,200 pcs
