Same model may have multiple batches, images only for reference.

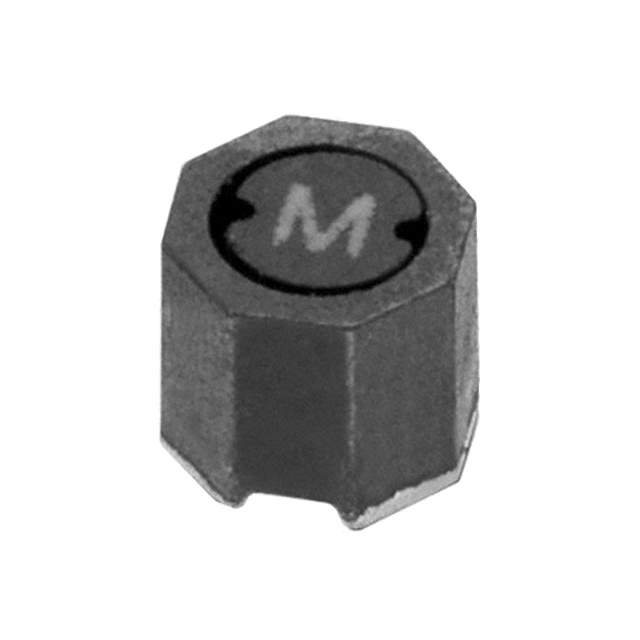

744025004 Real Image
Same model may have multiple batches, images only for reference.

744025004

Part No 744025004
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.35A 120MOHM SM
Datasheet
744025004 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 1.35 A
Current - Saturation (Isat) 1.7A
Shielding Shielded
DC Resistance (DCR) 120mOhm Max
Frequency - Self Resonant 84MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 2828
Size / Dimension 0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 550 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857197-744025004
Ultra Librarian 3D Model Ultra Librarian 744025004 CAD Model

Description

The WE-TPC series is a drum core, wirewound fixed inductor with a size of 0.110" L x 0.110" W (2.80mm x 2.80mm).

  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • Shielded: Yes
  • Maximum Seated Height: 0.118" (3.00mm)
  • Mounting: Surface Mount
  • Package: Nonstandard
  • DC Resistance (DCR): 120mOhm max
  • Current Rating: 1.35 A
  • Operating Temperature Range: -40°C to 125°C
  • ECCN: EAR99
  • Frequency Self-Resonant: 84MHz
  • Core Material: Ferrite
  • Package Type: Tape & Reel
  • Standard Package: 550 pcs
  • Product Status: Active
  • Manufacturer: Wurth Electronics Inc
