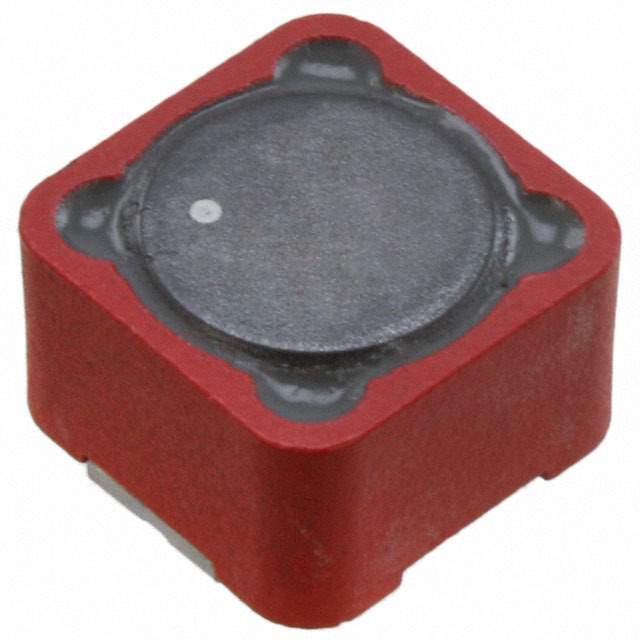

742792901 Real Image

Same model may have multiple batches, images only for reference.

742792901 Real Image

Same model may have multiple batches, images only for reference.

742792901

Get a Quote

Part No	742792901
Manufacturer	Wurth Electronics Inc
Catalog	Ferrite Beads and Chips
Description	FERRITE BEAD 1.18K OHM 2SMD 1LN
Datasheet	742792901 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Ferrite Beads and Chips
Mfr	Wurth Electronics Inc
Series	WE-PF
Package	Tape & Reel
Product Status	Active
Number of Lines	1
Impedance @ Frequency	1.18 kOhms @ 100 MHz
Current Rating (Max)	10A
DC Resistance (DCR) (Max)	9mOhm
Temperature Range - Operating	-40°C ~ 125°C
Package / Case	2-SMD, J-Lead
Mounting Type	Surface Mount
Height (Max)	0.315" (8.00mm)
Size / Dimension	0.472" L x 0.472" W (12.00mm x 12.00mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	857184-742792901
Ultra Librarian 3D Model	Ultra Librarian 742792901 CAD Model

Description

The WE-PF is a ferrite bead chip filter designed for a wide range of applications.

Size: 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height: 0.315" (8.00mm)
Maximum Current Rating: 10A
DC Resistance (DCR): 9mOhm
Impedance @ 100 MHz: 1.18 kOhms
Mounting Type: Surface Mount
Package: Tape & Reel
Standard Package: 500 pcs
Operating Temperature: -40°C to 125°C
Product Status: Active
Manufacturer: Wurth Electronics Inc
