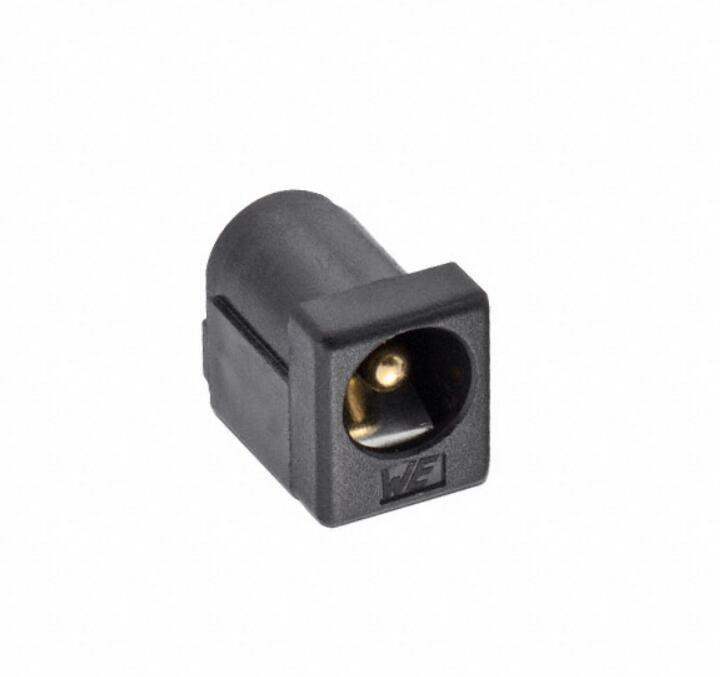

694106301002 Würth Elektronik
Same model may have multiple batches, images only for reference.

694106301002

Part No 694106301002
Manufacturer Wurth Electronics Inc
Catalog Barrel - Power Connectors
Description CONN PWR JACK 2.1X5.5MM SOLDER
Datasheet
694106301002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201109-694106301002
Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Connectors, Interconnects Barrel Connectors Power Connectors
Series WR-DC
Package Bulk
Product Status Active
Connector Type Jack
Industry Recognized Mating Diameter 2.10mm ID (0.083"), 5.50mm OD (0.217")
Actual Diameter 0.081" (2.05mm ID), 0.252" (6.40mm OD)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Ultra Librarian 3D Model Ultra Librarian 694106301002 CAD Model

Description

The WR-DC series from Würth Elektronik is a range of power connectors designed for barrel connector applications.

  • Connector Type: Jack
  • Packaging: Bulk
  • Conductors: 2
  • Contacts: 3
  • Mating Diameter (Industry Recognized): 2.10mm ID (0.083") and 5.50mm OD (0.217")
  • Actual Diameter: 0.081" (2.05mm ID) and 0.252" (6.40mm OD)
  • Manufacturer: Würth Elektronik
