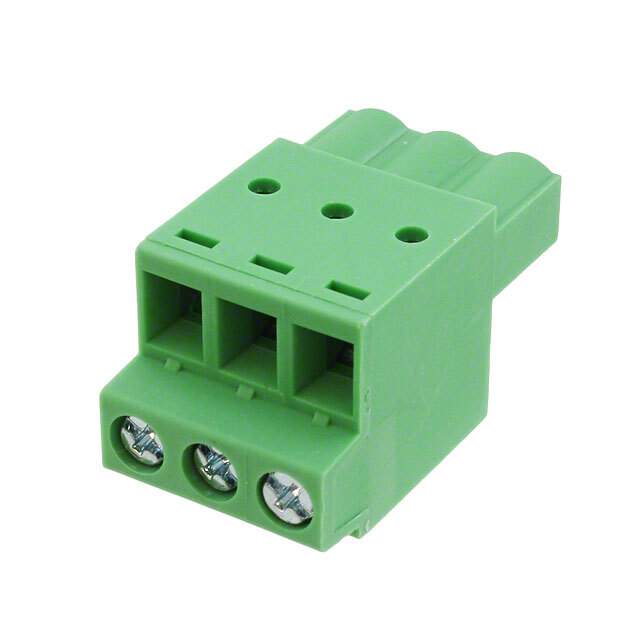

The WR-TBL Series 373B is a plug female socket connector that is designed for use in terminal blocks.

• Positions per Level: 3
• Levels: 1
• Pitch: 0.200 inches (5.08mm)
• Termination Style: screw pressure clip
• Wire Gauge: 12-24 AWG (0.2-3.3mm²)
• Current Rating: 16 A
• Voltage Rating (UL): 300 V
• Housing Material: polyamide (PA66) and Nylon 6/6
• Material Flammability Rating: UL94 V-0
• Color: green
• Package: tray
• Features: retention latches on the non-wire side
• Screw Size: M2.6
• Mounting: free-hanging (in-line)
• Insulation Height: 0.587 inches (14.91mm)
• Operating Temperature: -40°C to 105°C
• Torque Screw: 0.45 Nm (4.0 Lb-In)
• Wire Strip Length: 10mm
