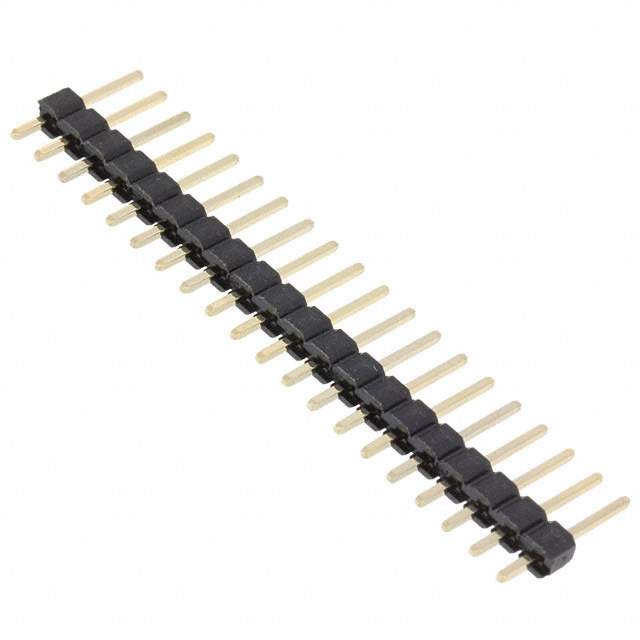

61302011121 Real Image1 61302011121 Real Image2
Same model may have multiple batches, images only for reference.
61302011121 Real Image1 61302011121 Real Image2
61302011121 Real Image1 61302011121 Real Image2
Same model may have multiple batches, images only for reference.

61302011121

Part No 61302011121
Manufacturer Wurth Electronics Inc
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 2.54MM / Connector Header Through Hole 20 position 0.100" (2.54mm)
Datasheet
61302011121 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Wurth Electronics Inc
Series WR-PHD
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.236" (6.00mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.454" (11.54mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating -
Contact Finish - Post -
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features -
Temperature Range - Operating -40°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 500 pcs
Win Source Part Number 1380986-61302011121
Ultra Librarian 3D Model Ultra Librarian 61302011121 CAD Model

Description

The WR-PHD is a 20-position male pin header connector in the rectangular connector category from Wurth Electronics Inc.

  • Connector Type: Header
  • Number of Positions: 20
  • Gender: Male
  • Contact Type: Pin
  • Mounting Type: Board Mount
  • Termination Type: Solder
  • Pitch: 0.100" (2.54mm)
  • Fastening Type: Push-Pull
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Operating Temperature: -40°C to 105°C
  • Series: WR-PHD
