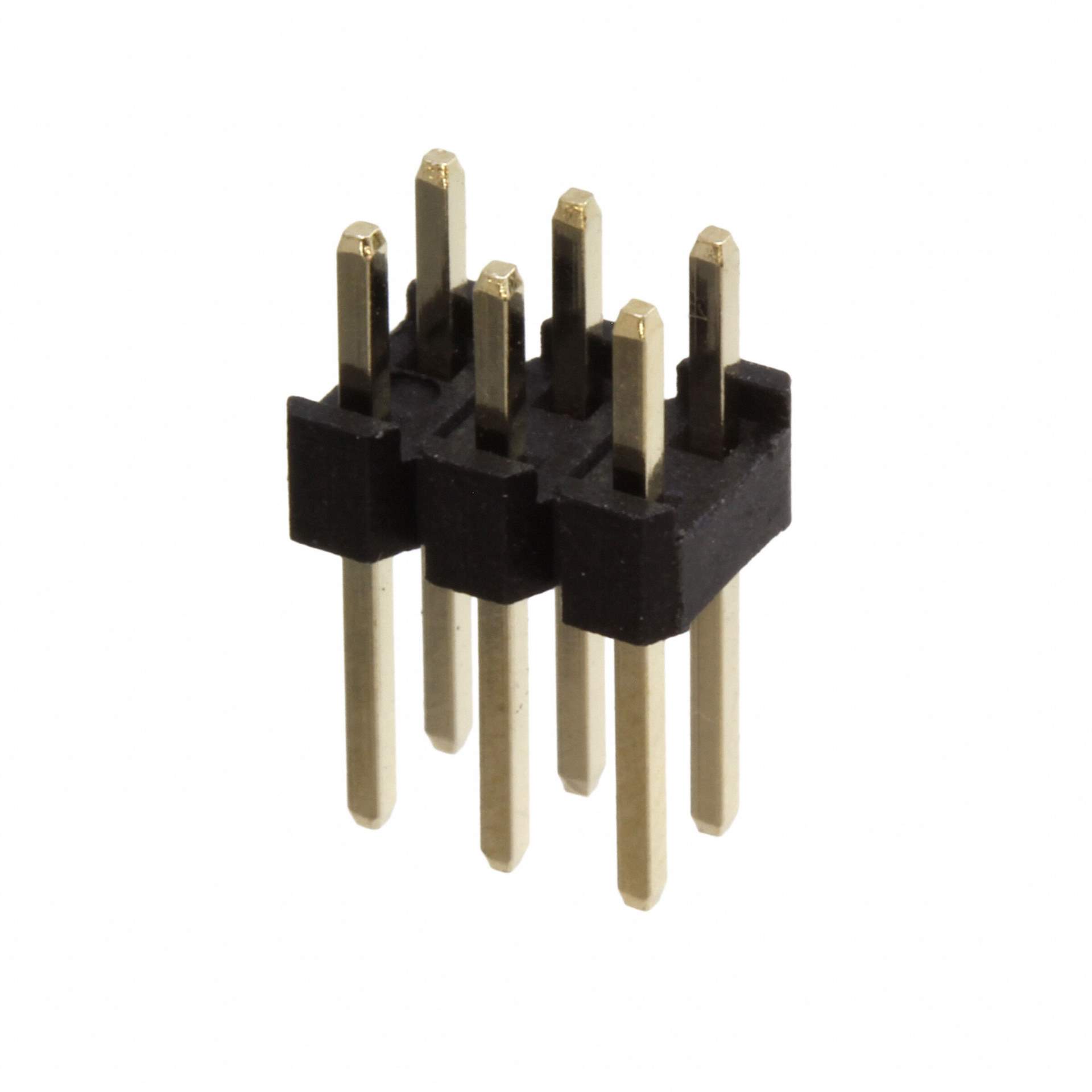

Same model may have multiple batches, images only for reference.

61300621121

Name: 61300621121
Brand: Wurth Electronics Inc
SKU: 807223
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	61300621121
Manufacturer	Wurth Electronics Inc
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 6POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Würth Elektronik
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.236" (6.00mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.454" (11.54mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-40°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	250V
Manufacturer Pack Quantity	1,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	807223-61300621121
Ultra Librarian 3D Model	Ultra Librarian 61300621121 CAD Model

Alternative Products

Description

The Würth Elektronik 807223-61300621121 is a 6-position male pin header connector designed for board to board or cable applications. Würth Elektronik

Pitch: 0.100" (2.54mm)
Mounting: Through hole
Voltage Rating: 250V
Maximum Current: 3A
Contact Material: Copper alloy
Contact Finish: Gold
Insulation Material: Polybutylene Terephthalate (PBT)
Flammability Rating: UL94 V-0
Contact Length: 0.454" (11.54mm)
Contact Shape: Square
Temperature Range: -40°C to 125°C
Supply and Demand Status: Balanced
Manufacturer Pack Quantity: 1,000
