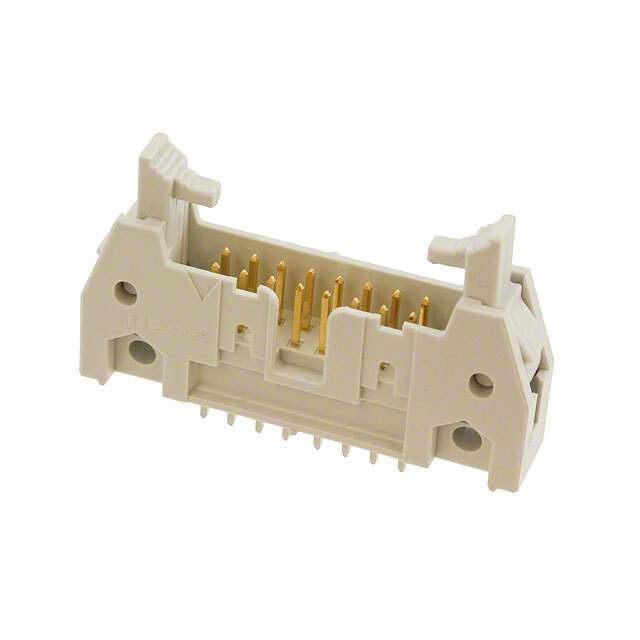

Same model may have multiple batches, images only for reference.

71918-216LF

Name: 71918-216LF
Brand: Amphenol
SKU: 1025188
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	71918-216LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 16POS 2.54MM / Connector Header Through Hole 16 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	Quickie™
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Short
Contact Length - Mating	0.228" (5.80mm)
Contact Length - Post	0.114" (2.90mm)
Insulation Height	0.685" (17.40mm)
Contact Shape	Square
Contact Finish - Mating	Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Thermoplastic, Glass Filled
Features	Keying Slot, Mounting Flange
Material Flammability Rating	UL94 V-0
Insulation Color	Gray
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	71918
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	71918216LF,71918-216LF-ND,609-4496
Standard Package	12
Win Source Part Number	1025188-71918-216LF
Ultra Librarian 3D Model	Ultra Librarian 71918-216LF CAD Model

Description

The Quickie™ series connector is a male pin header designed for board to cable/wire connections.

Model: 1025188-71918-216LF
Positions: 16
Pitch: 2.54mm
Keying Slot: Yes
Mounting Flange: Yes
Contact Shape: Square
Insulation Color: Gray
Termination: Solder
Fastening Type: Latch Lock/Eject Hooks and Short
Contact Material: Phosphor Bronze
Contact Finish (Mating): Gold, GXT™
Contact Finish Thickness (Post): 78.7µin (2.00µm)
Standard Package: 12
Packaging: Tubes
REACH: Affected
HTSUS Code: 8536.69.4040
Alternative Parts: 5-146130-7, 68602-116HLF, 67997-116HLF, 67996-116HLF, 102153-3, 102155-3, TSW-108-07-F-D
