Same model may have multiple batches, images only for reference.

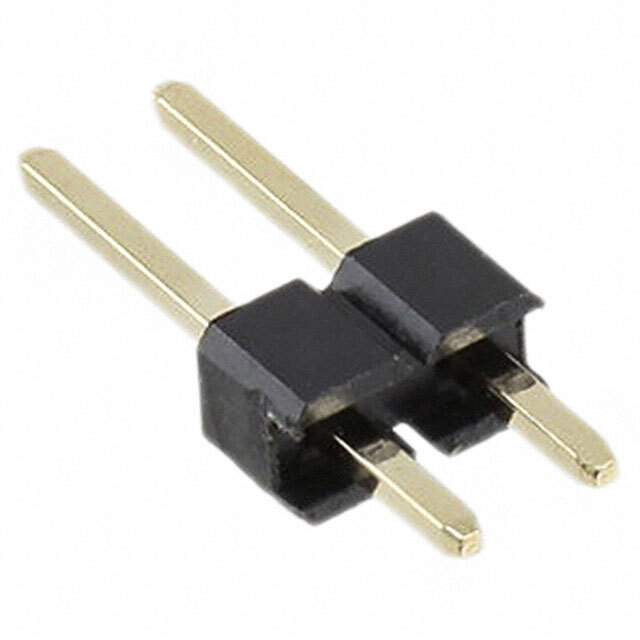

61300211121 Real Image
Same model may have multiple batches, images only for reference.

61300211121

Part No 61300211121
Manufacturer Wurth Electronics Inc
Catalog Rectangular Connectors
Datasheet
61300211121 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Würth Elektronik
Series WR-PHD
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.236" (6.00mm)
Contact Length - Post 0.118" (3.00mm)
Overall Contact Length 0.454" (11.54mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 250V
Other Names 732-5315,Q10341228
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293104-61300211121
Ultra Librarian 3D Model Ultra Librarian 61300211121 CAD Model

Description

The WR-PHD series is a 2-position header connector that is ideal for board-to-board or cable-to-board applications.

  • Fastening Type: Push-pull
  • Mounting: Soldered onto the board
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Contact Material: Copper alloy
  • Contact Finish: Gold
  • Insulation Material: Polyamide and nylon
  • Shrouded: Unshrouded
  • Contact Shape: Square
  • Operating Temperature: -40°C to 105°C
  • Contact Length (Mating): 0.236 inches
  • Contact Length (Post): 0.118 inches
  • Insulation Height: 0.100 inches
  • Overall Contact Length: 0.454 inches
  • Packaging: Bulk
  • Material Flammability Rating: UL94 V-0
  • Manufacturer: Würth Elektronik
  • Standard Package: 1,000
