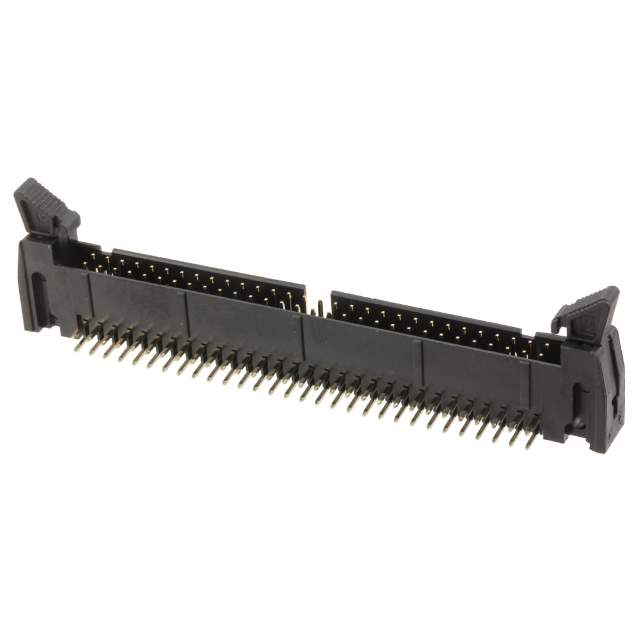

Same model may have multiple batches, images only for reference.

61206022121

Get a Quote

Part No	61206022121
Manufacturer	Wurth Electronics Inc
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 60POS 2.54MM / Connector Header Through Hole, Right Angle 60 position 0.100" (2.54mm)
Datasheet	61206022121 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Würth Elektronik
Series	WR-BHD
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	60
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Short
Contact Length - Mating	0.224" (5.70mm)
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.327" (8.30mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Insulation Material	Polybutylene Terephthalate (PBT)
Features	Keying Slot
Temperature Range - Operating	-40°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	250V
Standard Package	56
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1340724-61206022121
Ultra Librarian 3D Model	Ultra Librarian 61206022121 CAD Model

Description

The Würth Elektronik WR-BHD Male Pin Header is a rectangular connector used in board to cable/wire style applications.

Series: WR-BHD
Number of Positions: 60
Keying Slot: Yes
Connector Type: Header
Contact Type: Male Pin
All Positions Loaded: Yes
Number of Rows: 2
Termination: Solder
Package: Tray
Standard Package: 56
Voltage Rating: 250V
Current Rating (Amps): 3A
Mounting Type: Through Hole, Right Angle
Shrouding: Shrouded - 4 Wall
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Temperature Range: -40°C ~ 125°C
ECCN: EAR99
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4040
