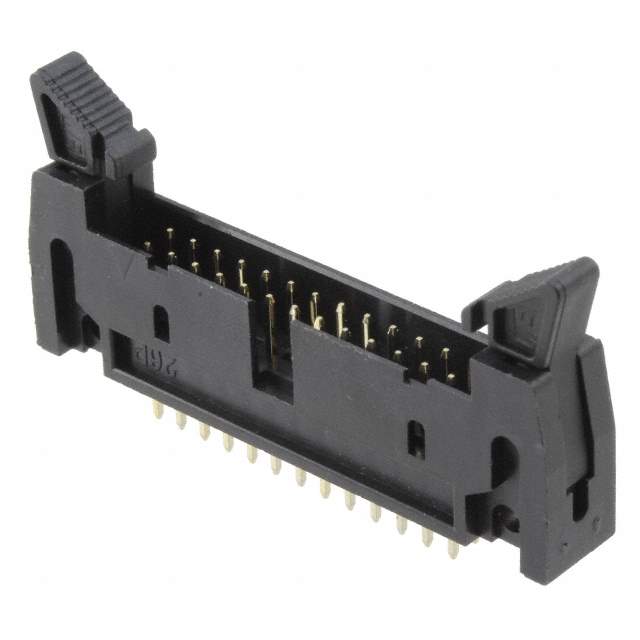

61202622021 Real Image1 61202622021 Real Image2
Same model may have multiple batches, images only for reference.
61202622021 Real Image1 61202622021 Real Image2
61202622021 Real Image1 61202622021 Real Image2
Same model may have multiple batches, images only for reference.

61202622021

Part No 61202622021
Manufacturer Wurth Electronics Inc
Catalog Rectangular Connectors
Description CONN HEADER VERT 26POS 2.54MM / Connector Header Through Hole 26 position 0.100" (2.54mm)
Datasheet
61202622021 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Wurth Electronics Inc
Series WR-BHD
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Mating 0.224" (5.70mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length -
Insulation Height 0.669" (17.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating -
Contact Finish - Post -
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT)
Features Keying Slot
Temperature Range - Operating -40°C ~ 125°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 96 pcs
Win Source Part Number 1380984-61202622021
Ultra Librarian 3D Model Ultra Librarian 61202622021 CAD Model

Description

The WR-BHD Header is a high-quality electronic component designed for use in rectangular connectors.

  • Series: WR-BHD series
  • Manufacturer: Wurth Electronics Inc.
  • Positions: 26
  • Rows: 2
  • Termination Style: Solder
  • Feature: Latch lock/eject hooks
  • Material: Copper alloy
  • Contact Finish: Gold
  • Voltage Rating: 250V
  • Operating Temperature: -40°C to 125°C
