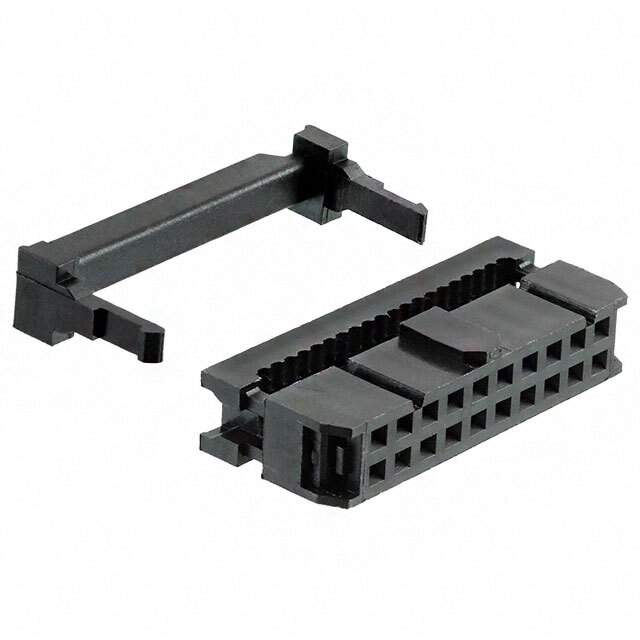

61202023021 Real Image1 61202023021 Real Image2
Same model may have multiple batches, images only for reference.
61202023021 Real Image1 61202023021 Real Image2
61202023021 Real Image1 61202023021 Real Image2
Same model may have multiple batches, images only for reference.

61202023021

Part No 61202023021
Manufacturer Wurth Electronics Inc
Catalog Rectangular Connectors
Description CONN RCPT 20POS IDC 28AWG GOLD / 20 Position Rectangular Receptacle Connector IDC Gold 28 AWG
Datasheet
61202023021 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Free Hanging, Panel Mount
Mfr Wurth Electronics Inc
Series WR-BHD
Package Tray
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 20
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Fastening Type -
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 28 AWG
Features Feed Through, Polarizing Key, Strain Relief
Contact Finish Gold
Contact Finish Thickness -
Color Black
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Standard Package 54 pcs
Win Source Part Number 1380983-61202023021
Ultra Librarian 3D Model Ultra Librarian 61202023021 CAD Model

Description

The WR-BHD is a 20-position female socket receptacle connector in the rectangular connector category.

  • Mounting: Free hanging or panel mount
  • Pitch: 0.100" (2.54mm)
  • Design: Feed through
  • Feature: Polarizing key and strain relief
  • Contact Finish: Gold
  • Compatible With: Ribbon cables
  • Wire Gauge: 28 AWG
  • Operating Temperature: -40°C to 105°C
  • Series: WR-BHD
  • Manufacturer: Wurth Electronics Inc.
