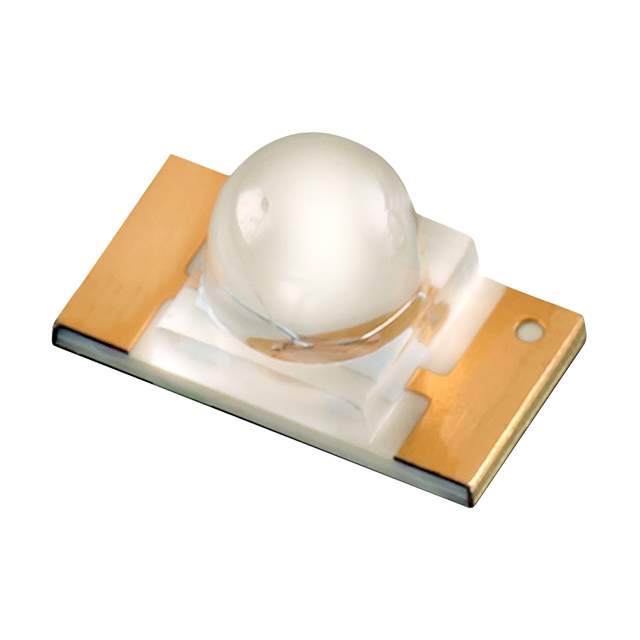

156120VS82500 Real Image
Same model may have multiple batches, images only for reference.

156120VS82500

Part No 156120VS82500
Manufacturer Wurth Electronics Inc
Catalog LED Indication - Discrete
Description LED GRN CLEAR 2SMD BOTTOM ENTRY / Green 573nm LED Indication - Discrete 2V 1206 (3216 Metric)
Datasheet
156120VS82500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Würth Elektronik
Series WL-SMRW
Package Tape & Reel
Color Green
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 1050mcd
Lens Style Round with Domed Top
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 20°
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 573nm
Wavelength - Peak 575nm
Package / Case 1206 (3216 Metric)
Supplier Device Package 2-SMD
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.95mm
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 732-11424-6,732-11424-1,732-11424-2
Standard Package 2,000
Win Source Part Number 1006032-156120VS82500
Ultra Librarian 3D Model Ultra Librarian 156120VS82500 CAD Model

Description

The 1006032-156120VS82500 is a green LED indication component that is a part of the WL-SMRW series and is manufactured by Würth Elektronik.

  • Color: Green
  • Mounting Type: Surface mount
  • Voltage Forward: 2V
  • Current Test: 20mA
  • Viewing Angle: 20°
  • Millicandela Rating: 1050mcd
  • Wavelength: 573nm to 575nm
  • Height: 1.95mm
  • RoHS Compliant: Yes
