Same model may have multiple batches, images only for reference.

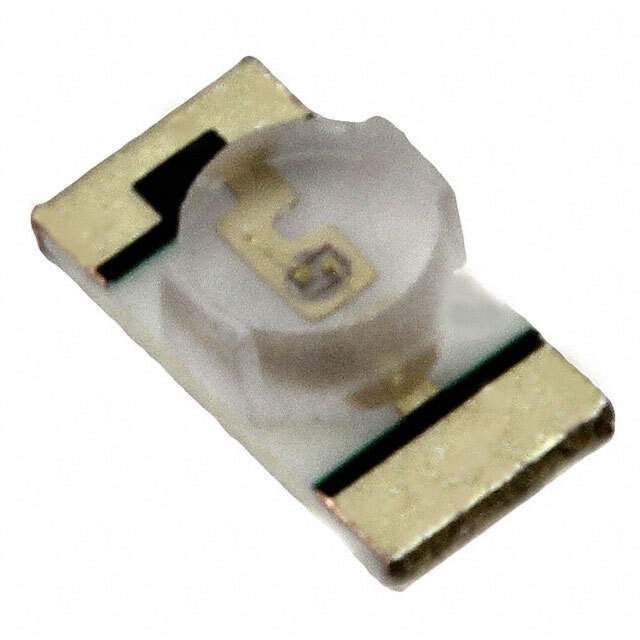

156120RS75000 Real Image
Same model may have multiple batches, images only for reference.

156120RS75000

Part No 156120RS75000
Manufacturer Wurth Electronics Inc
Catalog LED Indication - Discrete
Description WL-SMRW SMD chip LED reverse mount mono-color waterclear | LED RED CLEAR 1206 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Wurth Electronics Inc.
Packaging Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 60mcd
Lens Style Rectangle with Flat Top
Voltage - Forward (Vf) 2V
Current - Test 20mA
Viewing Angle 140°
Mounting Style SMT, Bottom Entry
Wavelength - Dominant 624nm
Wavelength - Peak 632nm
Manufacturer Package 1206
Supplier Device Package 1206
Parts Dimension 3.20mm L x 1.60mm W
Height (Maximum) 1.40mm
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1121317-156120RS75000
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 156120RS75000 CAD Model

Description

The Wurth Electronics Inc. 1206 SMT LED is a high-quality electronic component that is ideal for use in a variety of applications.

  • Mounting Technology: Bottom entry SMT
  • Lens: Clear
  • Viewing Angle: 140 degrees
  • Millicandela Rating: 60mcd
  • Wavelength-Dominant: 624nm
  • Wavelength-Peak: 632nm
  • Package: 1206
  • Height: 1.40mm
  • Popularity: Medium
  • Supply and Demand: Limited
  • MSL Level: 3 (168 hours)
  • Voltage-Forward (Vf): 2V
