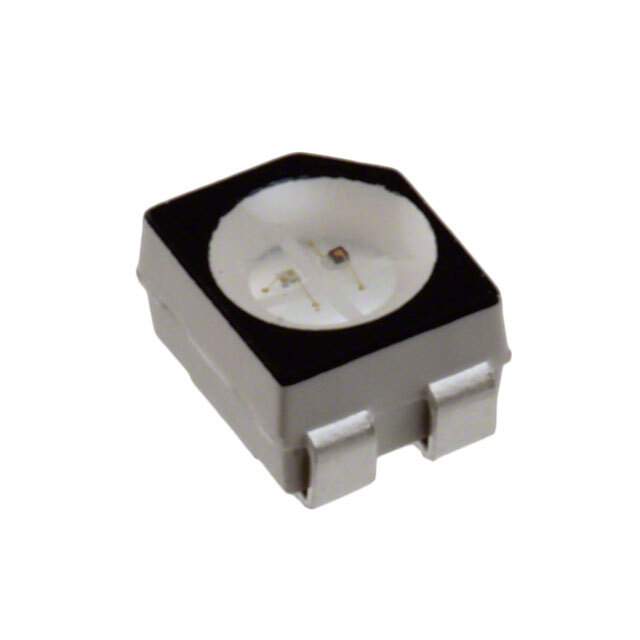

150141YB73100 Real Image
Same model may have multiple batches, images only for reference.

150141YB73100

Part No 150141YB73100
Manufacturer Wurth Electronics Inc
Catalog LED Indication - Discrete
Description LED BLUE/YELLOW CLEAR 3528 SMD / WL-SBTW SMD TOP LED bi-color waterclear
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Color Blue, Yellow
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 240mcd Blue, 220mcd Yellow
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 3.2V Blue, 2V Yellow
Current - Test 20mA Blue, 20mA Yellow
Viewing Angle 120°
Mounting Style SMD
Wavelength - Dominant 470nm Blue, 590nm Yellow
Wavelength - Peak 465nm Blue, 592nm Yellow
Manufacturer Package 4-PLCC
Supplier Device Package 3528
Dimension 3.20mm L x 2.80mm W
Height (Maximum) 2.10mm
Manufacturer Pack Quantity 2,000
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806656-150141YB73100
Ultra Librarian 3D Model Ultra Librarian 150141YB73100 CAD Model

Description

The 806656-150141YB73100 is an SMD LED from Würth Elektronik. It is a part of the 4-PLCC package and is designed for independent applications.

  • Packaging: Reel
  • Color: Blue and Yellow
  • Viewing Angle: 120°
  • Lens Transparency: Clear
  • Blue Millicandela Rating: 240mcd
  • Yellow Millicandela Rating: 220mcd
  • Blue Forward Voltage: 3.2V
  • Yellow Forward Voltage: 2V
  • Blue Wavelength-Dominant: 470nm
  • Yellow Wavelength-Dominant: 590nm
