Same model may have multiple batches, images only for reference.

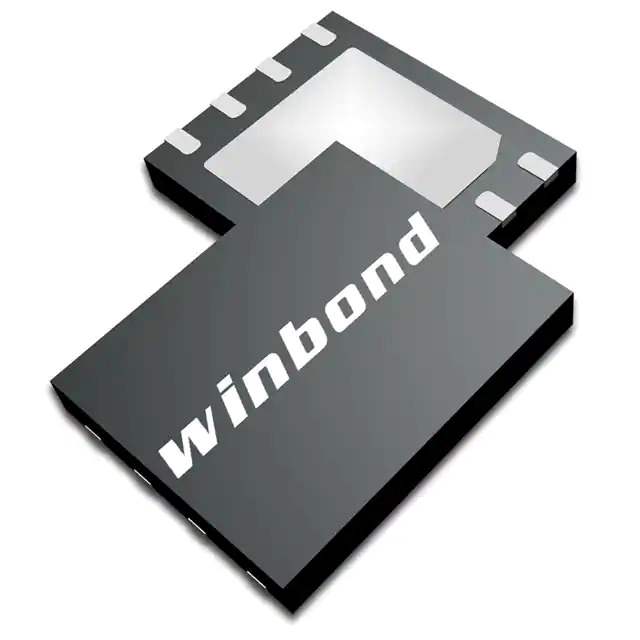

W25Q20EWSVIG Real Image
Same model may have multiple batches, images only for reference.

W25Q20EWSVIG

Part No W25Q20EWSVIG
Manufacturer Winbond Electronics
Catalog Memory
Description IC FLASH 2MBIT SPI/QUAD 8VSOP
Datasheet
W25Q20EWSVIG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Winbond Electronics
Series SpiFlash®
Package Tray
Product Status Active
Programmable Not Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 2Mbit
Memory Organization 256K x 8
Memory Interface SPI - Quad I/O
Clock Frequency 104 MHz
Write Cycle Time - Word, Page 30µs, 800µs
Access Time 6 ns
Voltage - Supply 1.65V ~ 1.95V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-VSOP
Base Product Number W25Q20
Standard Package 480 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0071
Win Source Part Number 849839-W25Q20EWSVIG
Ultra Librarian 3D Model Ultra Librarian W25Q20EWSVIG CAD Model

Description

The W25Q20EWSVIG is a NOR flash memory chip manufactured by Winbond Electronics.

  • Memory Size: 2Mbit
  • Memory Type: Non-Volatile
  • Access Time: 6 ns
  • Voltage Supply Range: 1.65V to 1.95V
  • Mounting Type: Surface Mount
  • Package: 8-SOIC
  • Operating Temperature Range: -40°C to 85°C
  • Memory Interface: SPI Quad I/O
  • Clock Frequency: 104 MHz
