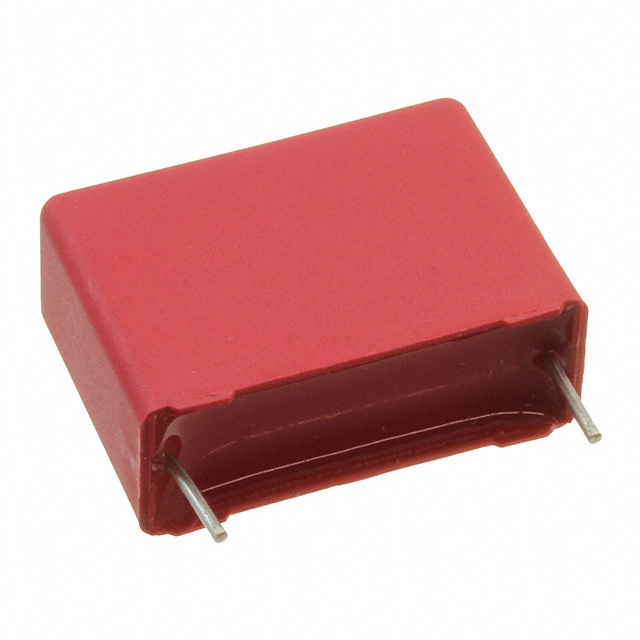

Same model may have multiple batches, images only for reference.
FKP1T006804B00JSSD WIMA – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

FKP1T006804B00JSSD

Part No FKP1T006804B00JSSD
Manufacturer WIMA
Catalog Film Capacitors
Description FKP 1 680 pF 1600 VDC 5x11x18 PC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 680 pF
Tolerance ±5%
Voltage Rating - AC 650V
Voltage Rating - DC 1600V (1.6kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Case / Package Radial
Size / Dimension 0.709" L x 0.197" W (18.00mm x 5.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings AEC-Q200
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1521260-FKP1T006804B00JSSD
Ultra Librarian 3D Model Ultra Librarian FKP1T006804B00JSSD CAD Model
