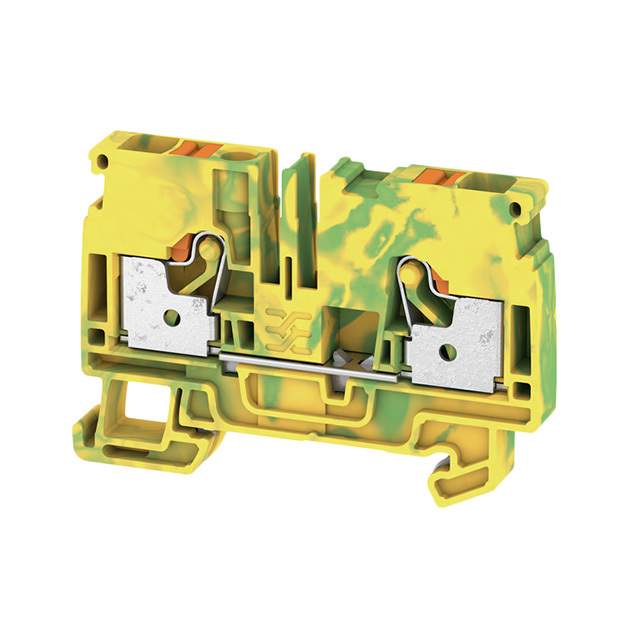

1991810000 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Din Rail, Channel
Mfr Weidmuller
Series A
Package Box
Product Status Active
Type Ground, Earth
Number of Positions 2
Number of Levels 1
Terminal - Width 8.1mm
Termination Style Push In
Voltage - IEC 800V
Voltage - UL 600V
Wire Gauge or Range - AWG 8-22 AWG
Wire Gauge or Range - mm2 0.5-6mm²
Color Green, Yellow
Material - Insulation Thermoplastic, Wemid
Material Flammability Rating UL94 V-0
Stripping Length 12mm
Standard Package 50 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1121540-1991810000
Ultra Librarian 3D Model Ultra Librarian 1991810000 CAD Model

Description

The 1121540-1991810000 is a ground terminal block designed for DIN rail or channel mounting.

  • Positions: 2
  • Levels: 1
  • Termination Style: Push-In
  • Voltage Rating (IEC): 800V
  • Voltage Rating (UL): 600V
  • Wire Gauge Range: 8-22 AWG
  • Wire Gauge Range (mm²): 0.5-6mm²
  • Insulation Material: Thermoplastic and Wemid
  • Manufacturer: Weidmuller
  • Product Status: Active
