Same model may have multiple batches, images only for reference.

1943840000

Get a Quote

Part No	1943840000
Manufacturer	Weidmuller
Catalog	Headers, Plugs and Sockets

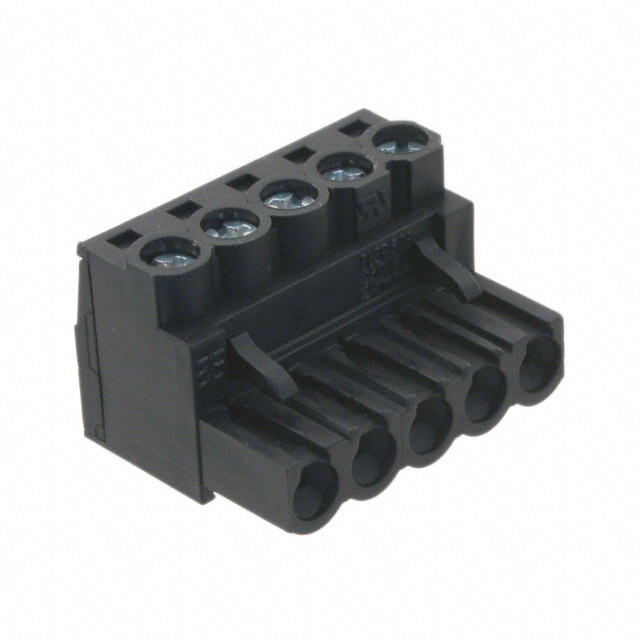

Description	5 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Weidmüller
Series	Omnimate BL
Packaging	Box
Type	Plug, Female Sockets
Number of Positions	5
Positions Per Level	5
Number of Levels	1
Pitch	0.200" (5.08mm)
Plug Wire Entry	180°
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Mounting Type	Free Hanging (In-Line)
Current - IEC	23A
Voltage - IEC	400 V
Current - UL	20 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	12-30 AWG
Wire Gauge or Range - mm2	0.2-4mm²
Color	Black
Temperature Range - Operating	-50°C ~ 100°C
Contact Mating Finish	Tin
Features	Retention Latches (Non-Wire Side)
Material Flammability Rating	UL94 V-0
Screw Size	M2.5
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Wire Strip Length	7mm
Contact Material	Copper Alloy
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	0.632" (16.05mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1480765-1943840000
Ultra Librarian 3D Model	Ultra Librarian 1943840000 CAD Model
