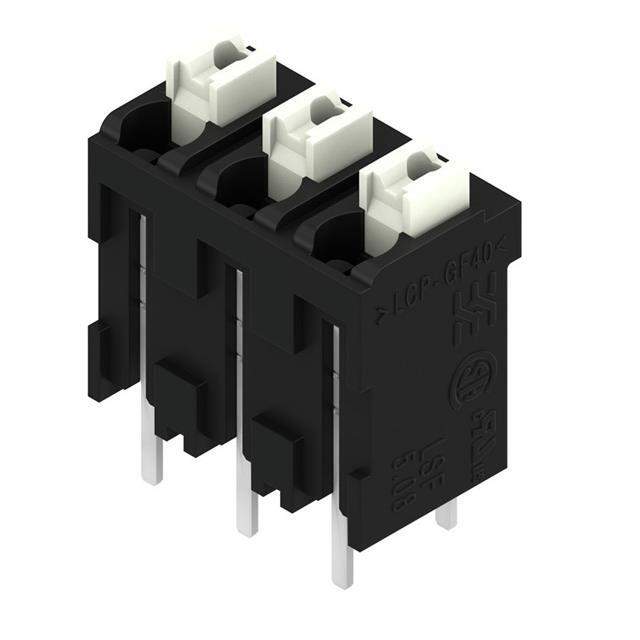

1826060000 Real Image
Same model may have multiple batches, images only for reference.

1826060000

Part No 1826060000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description TERM BLK 3POS TOP ENT 5.08MM PCB / 3 Position Wire to Board Terminal Block Vertical with Board 0.200" (5.08mm) Through Hole
Datasheet
1826060000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Mfr Weidmuller
Series Omnimate LSF-SMT
Package Tube
Number of Levels 1
Positions Per Level 3
Pitch 0.200" (5.08mm)
Mating Orientation Vertical with Board
Current 12 A
Voltage 300 V
Wire Gauge 16-24 AWG
Mounting Type Through Hole
Wire Termination Screwless - Push Button Clamp
Features -
Color Black
Temperature Range - Operating -50°C ~ 240°C
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Material - Plating Copper Alloy - Tin Plated
Clamp Material - Plating -
Screw Material - Plating -
Torque - Screw -
Screw Thread -
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 38 pcs
Win Source Part Number 1380585-1826060000
Ultra Librarian 3D Model Ultra Librarian 1826060000 CAD Model

Description

The 1380585-1826060000 is a terminal block from the Omnimate LSF-SMT series.

  • Positions per Level: 3
  • Level: 1
  • Pitch: 0.200" (5.08mm)
  • Housing Material: Liquid crystal polymer (LCP), glass filled
  • Voltage Rating: 300V
  • Current Rating: 12A
  • Wire Termination: Screwless, push-button clamp
  • Contact Material: Copper alloy, tin plated
  • Mounting Type: Through-hole
  • Operating Temperature Range: -50°C to 240°C
  • Manufacturer: Weidmuller
