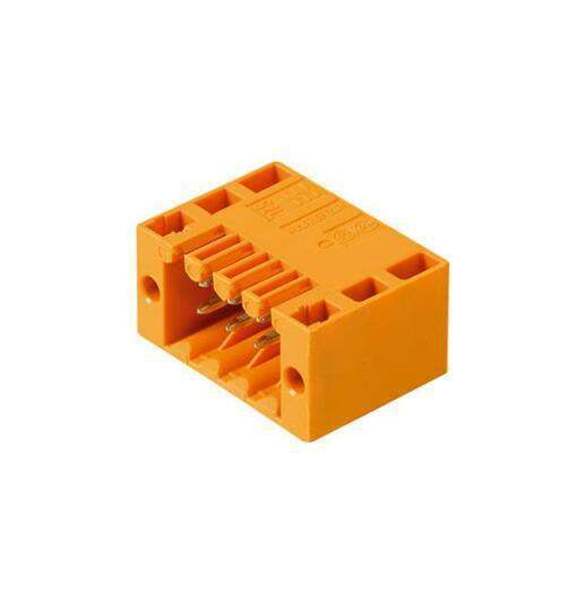

1728470000Weidmüller
Same model may have multiple batches, images only for reference.

1728470000

Part No 1728470000
Manufacturer Weidmuller
Catalog Rectangular Connectors
Description TERM BLOCK HDR 6POS 90DEG 3.5MM
Datasheet
1728470000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Series Omnimate S2L
Package Bulk
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Pitch 0.138" (3.50mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Win Source Part Number WS1206389-1728470000
Ultra Librarian 3D Model Ultra Librarian 1728470000 CAD Model

Description

6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
