Same model may have multiple batches, images only for reference.

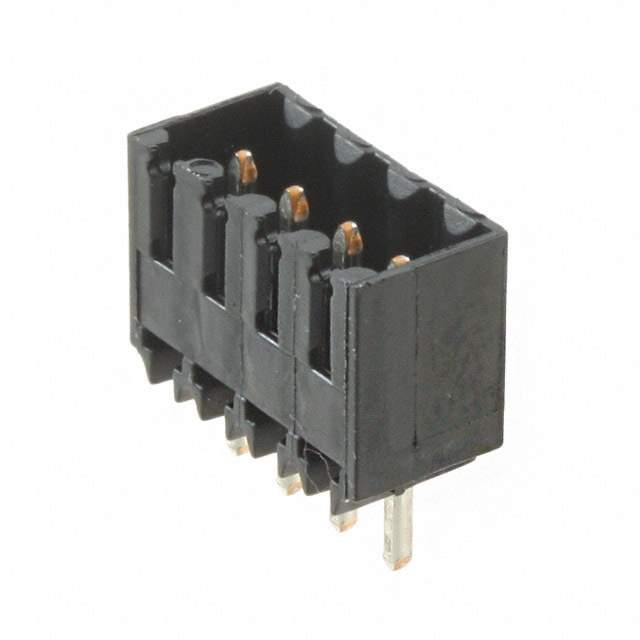

1616030000 Real Image
Same model may have multiple batches, images only for reference.

1616030000

Part No 1616030000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 4POS VERT 3.5MM / 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Weidmüller
Series Omnimate SL
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Positions Per Level 4
Number of Levels 1
Pitch 0.138" (3.50mm)
Header Orientation Vertical
Termination Style Solder
Mounting Type Through Hole
Current - IEC 12A
Voltage - IEC 125 V
Current - UL 10 A
Voltage - UL 300 V
Color Black
Temperature Range - Operating -20°C ~ 100°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Contact Material Copper Alloy
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.177" (4.50mm)
Insulation Height 0.437" (11.10mm)
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349224-1616030000
Ultra Librarian 3D Model Ultra Librarian 1616030000 CAD Model

Description

The Omnimate SL 1349224-1616030000 is a connector, interconnect that falls under the category of terminal blocks - headers, plugs and sockets.

  • Connector Type: Male Pin, Shrouded (4 Side)
  • Number of Positions Per Level: 4
  • Number of Levels: 1
  • Pitch: 0.138" (3.50mm)
  • Current Rating (IEC): 12A
  • Current Rating (UL): 10A
  • Voltage Rating (IEC): 125V
  • Voltage Rating (UL): 300V
  • Packaging: Bulk
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Mounting Type: Through Hole
  • Operating Temperature: -20°C to 100°C
  • Standard Package: 100
