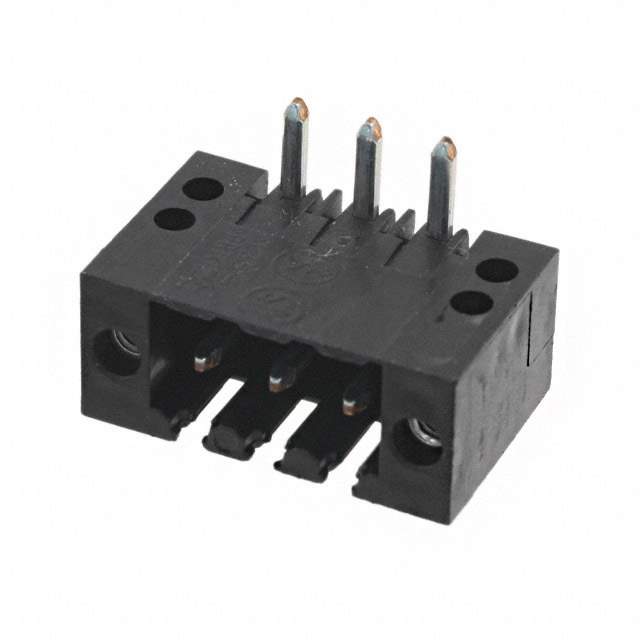

1615540000 Real Image
Same model may have multiple batches, images only for reference.

1615540000

Part No 1615540000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 3POS 90DEG 3.5MM / 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Weidmüller
Series Omnimate SL
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.138" (3.50mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Type Through Hole
Current - IEC 12A
Voltage - IEC 125 V
Current - UL 10 A
Voltage - UL 300 V
Color Black
Temperature Range - Operating -20°C ~ 100°C
Contact Mating Finish Tin
Features Mating and Mounting Flange
Material Flammability Rating UL94 V-0
Contact Material Copper Alloy
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.177" (4.50mm)
Insulation Height 0.295" (7.50mm)
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349184-1615540000
Ultra Librarian 3D Model Ultra Librarian 1615540000 CAD Model

Description

The 1615540000 is a connector, interconnects - terminal blocks - headers, plugs, and sockets manufactured by Weidmuller. It is a high-quality component that offers excellent performance and durability. This device has a Win Source Part Number of 1349184-1615540000 and is part of the Omnimate SL series.

  • Header Type: Male header with shrouded pins on four sides
  • Positions per Level: Three
  • Header Orientation: 90 degrees
  • Mounting Type: Through-hole
  • Contact Material: Copper alloy
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 100
