Same model may have multiple batches, images only for reference.

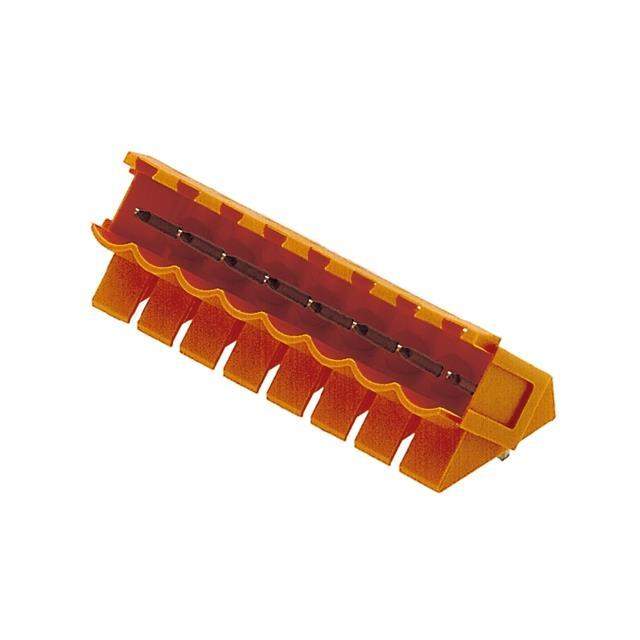

1605610000 Real Image
Same model may have multiple batches, images only for reference.

1605610000

Part No 1605610000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 10POS 5.08MM / 10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 135° Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Weidmüller
Series Omnimate SL
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 10
Positions Per Level 10
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation 135°
Termination Style Solder
Mounting Type Through Hole
Current - IEC 17A
Voltage - IEC 400 V
Current - UL 15 A
Voltage - UL 300 V
Color Orange
Temperature Range - Operating -50°C ~ 100°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Contact Material Copper Alloy
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.126" (3.20mm)
Insulation Height 0.484" (12.30mm)
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350287-1605610000
Ultra Librarian 3D Model Ultra Librarian 1605610000 CAD Model

Description

The Omnimate SL series from Weidmüller is a range of high-quality connectors designed for use in various applications. Weidmüller

  • Type: Header, Male Pins, Shrouded
  • Positions per Level: 10
  • Pitch: 0.200" (5.08mm)
  • Orientation: 135 Degrees
  • Termination Style: Solder
  • Current Rating (IEC): 17A
  • Current Rating (UL): 15A
  • Voltage Rating (IEC): 400V
  • Voltage Rating (UL): 300V
  • Contact Material: Copper Alloy
  • Contact Mating Finish: Tin
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Flammability Rating: UL94 V-0
