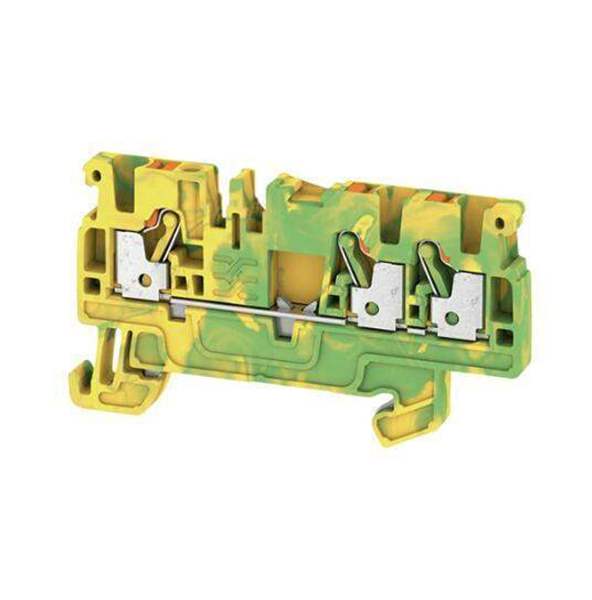

1521670000Weidmüller
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Din Rail, Channel
Series A
Package Box
Product Status Active
Type Ground, Earth
Number of Positions 3
Number of Levels 1
Terminal - Width 5.1mm
Termination Style Push In
Voltage - IEC 800V
Win Source Part Number WS1206018-1521670000
Ultra Librarian 3D Model Ultra Librarian 1521670000 CAD Model

Description

Spring connection with PUSH IN Technology The innovative PUSH IN technology reduces the amount of time you spend on wiring to a minimum. Direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types.
