1202500000

Part No 1202500000
Manufacturer Weidmuller
Catalog Heavy Duty Connectors

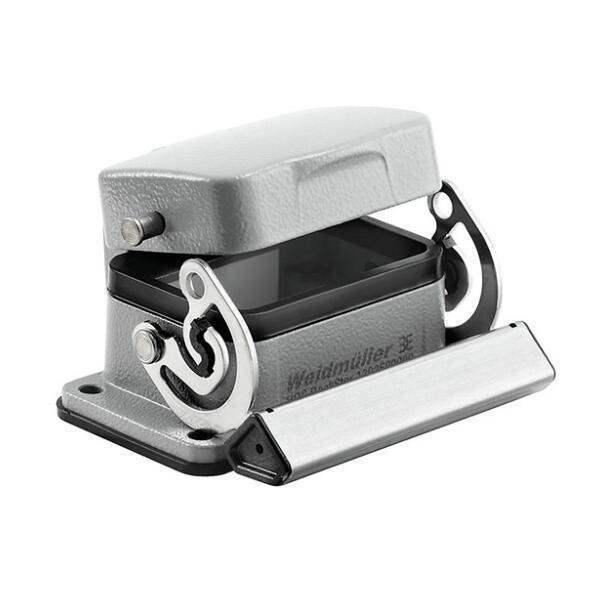

Description CONN BASE BOTTOM ENTRY SZ3
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1205810-1202500000
Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Heavy Duty Connectors Heavy Duty Connector Housings, Hoods, Bases
Package Bulk
Product Status Active
Connector Type Base - Panel Mount
Style Bottom Entry
Size 3
Lock Location Locking Clip (1) on Base Bottom
Size / Dimension 3.228" L x 1.850" W x 1.144" H (82.00mm x 47.00mm x 29.05mm)
Housing Finish Powder Coated
Ultra Librarian 3D Model Ultra Librarian 1202500000 CAD Model

Description

The special die-cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings. The cleverly designed interlock system is manufactured from stainless steel. This guarantees a long lifespan with high resistance to corrosion and impact. The housing interlock system provides integrated safety. Our unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening. The laser marking allows for easy and quick identification. Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned. Weidmüller RockStar® IP 65 / NEMA Type 4X housings - your first choice for industrial housings with IP 65 protection.
