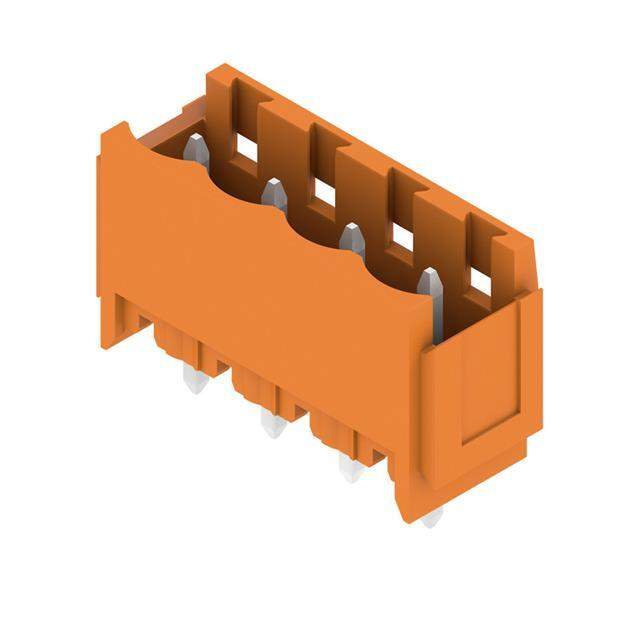

Same model may have multiple batches, images only for reference.

1147360000

Get a Quote

Part No	1147360000
Manufacturer	Weidmuller
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 4POS VERT 5.08MM / 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	Weidmüller
Series	Omnimate SL
Package	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.200" (5.08mm)
Header Orientation	Vertical
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	24A
Voltage - IEC	400 V
Current - UL	18.5 A
Voltage - UL	300 V
Color	Orange
Temperature Range - Operating	-50°C ~ 100°C
Contact Mating Finish	Tin
Features	Interlocking (Side)
Material Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Housing Material	Polyamide (PA) , Nylon, Glass Filled
Contact Tail Length	0.126" (3.20mm)
Insulation Height	0.472" (12.00mm)
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349487-1147360000
Ultra Librarian 3D Model	Ultra Librarian 1147360000 CAD Model

Description

The SunLED discrete LED indication is a NanoPoint-0201 series product.

Manufacturer: Not specified in description
Product Name: NanoPoint-0201 Series LED
Color: Green
Package: Tape & Reel
Size/Dimension: 0.65mm L x 0.35mm W
Standard Package: 4,000
Configuration: Standard
Viewing Angle: 145℃
Lens Color: Colorless
Lens Transparency: Clear
Millicandela Rating: 79mcd
Current - Test: 5mA
Wavelength - Dominant: 527nm
Wavelength - Peak: 518nm
Height (Max): 0.25mm
Mounting Type: Surface Mount
Package/Case: 2-SMD, No Lead
Supplier Device Package: 2-SMD
Lens Style: Rectangle with Flat Top
Lens Size: 0.65mm x 0.35mm
ECCN: EAR99
REACH Status: REACH Unaffected
HTSUS: 8541.41.0000
Voltage Forward (Vf) (Typ): 3V
