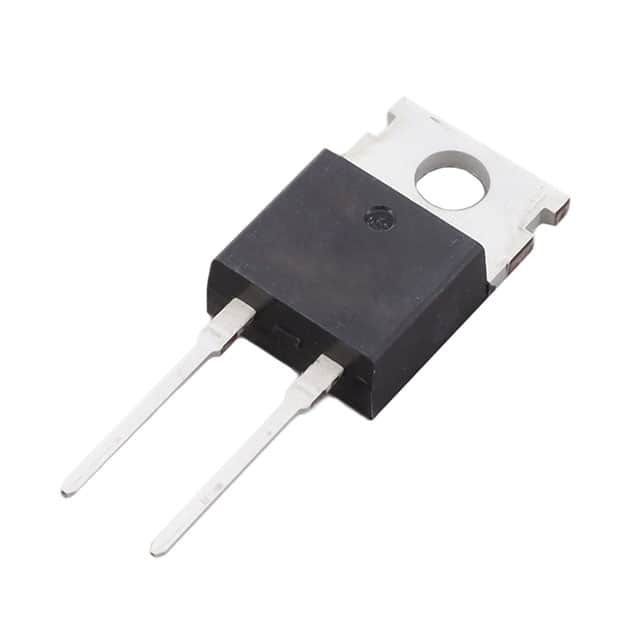

Same model may have multiple batches, images only for reference.
NXPSC066506Q
Same model may have multiple batches, images only for reference.

NXPSC066506Q

Part No NXPSC066506Q
Manufacturer WeEn Semiconductors
Catalog Diodes, Rectifiers - Single
Description DIODE SIL CARB 650V 6A TO220AC / Diode 650 V 6A Through Hole TO-220AC
Datasheet
NXPSC066506Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr WeEn Semiconductors
Package Tube
Product Status Last Time Buy
Technology SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) 650 V
Current - Average Rectified (Io) 6A
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 6 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 200 µA @ 650 V
Capacitance @ Vr, F 190pF @ 1V, 1MHz
Mounting Type Through Hole
Package / Case TO-220-2
Supplier Device Package TO-220AC
Operating Temperature - Junction 175°C (Max)
Base Product Number NXPSC
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 929559-NXPSC066506Q
Ultra Librarian 3D Model Ultra Librarian NXPSC066506Q CAD Model

Description

The 929559-NXPSC066506Q is a single diode rectifier used in discrete semiconductor products.

  • Type: SiC (Silicon Carbide) Schottky diode
  • Reverse Voltage: 650 V
  • Average Rectified Current: 6A
  • Forward Voltage Drop: 1.7 V @ 6 A
  • Recovery Time: 0 ns
  • Reverse Leakage Current: 200 µA @ 650 V
  • Capacitance: 190 pF @ 1V and 1MHz
  • Operating Temperature: Up to 175°C
  • Manufacturer: WeEn Semiconductors
  • Status: Last time buy
