Same model may have multiple batches, images only for reference.

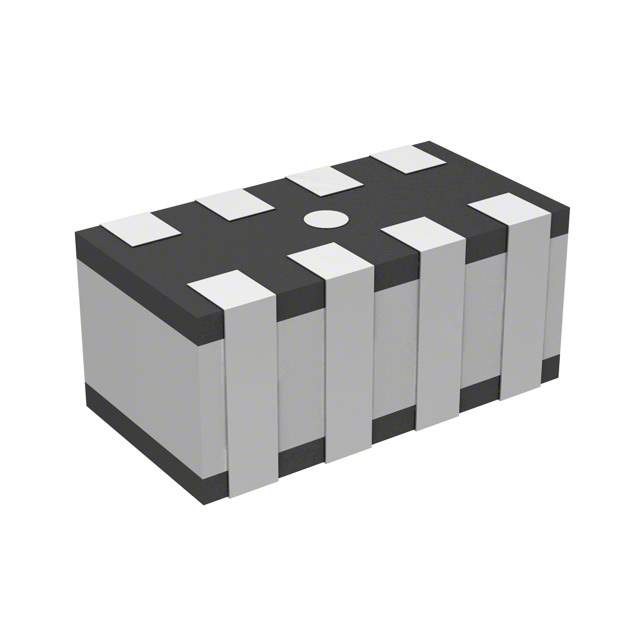

RGCMA2010090V3T Real Image
Same model may have multiple batches, images only for reference.

RGCMA2010090V3T

Part No RGCMA2010090V3T
Manufacturer Walsin Technology Corporation
Catalog Common Mode Chokes
Description CMC 300MA 4LN 120 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Walsin Technology Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 4
Impedance @ Frequency 120 Ohm @ 100MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 1.3 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.039" (1.00mm)
Dimension 0804 (2010 Metric), 8 Lead
Win Source Part Number 1092190-RGCMA2010090V3T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RGCMA2010090V3T CAD Model

Description

This electronic component is a signal line filter manufactured by Walsin Technology Corporation.

  • Maximum Current Rating: 300mA
  • DC Resistance (DCR): 1.3 Ohm
  • Filter Type: SMD (SMT)
  • Number of Lines: 4
  • Impedance: 120 Ohm @ 100MHz
  • Operating Temperature Range: -40°C to 85°C
  • Packaging: Reel - TR
  • Height: 0.039" (1.00mm)
  • Product Category: Filter
  • Market Status: Active
  • Dimension: 0804 (2010 Metric)
  • Number of Leads: 8
  • Supply and Demand Status: Balanced
