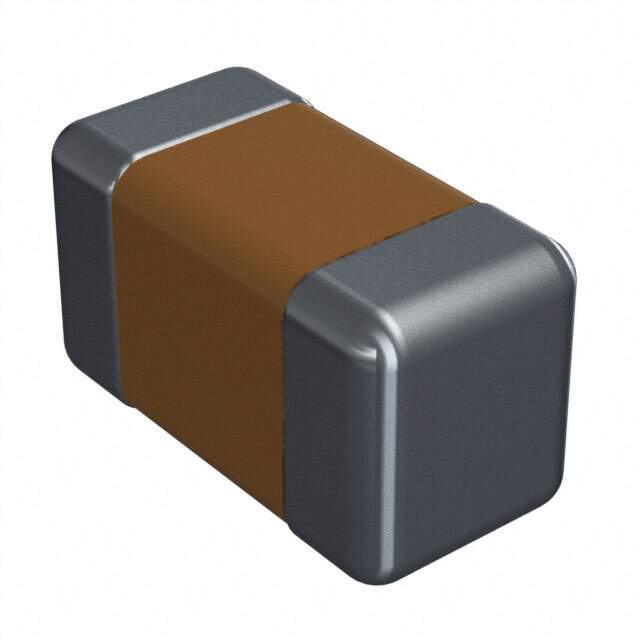

The 0402B182K500CT is a multilayer ceramic capacitor (MLCC) manufactured by Walsin Technology Corporation. It is designed for general-purpose applications in electronic circuits, providing stable capacitance in a small form factor. This capacitor is commonly used for decoupling, bypassing, and filtering applications.

Applications:

• Decoupling in digital circuits
• Bypassing noise in analog circuits
• Filtering in power supplies
• Timing circuits
• General-purpose applications in electronic devices

Features:

• Small 0402 package size
• Multilayer ceramic construction
• Capacitance value of 1800 pF (1.8 nF)
• Voltage rating of 50V
• X7R dielectric material
• RoHS compliant

Benefits:

• Miniature size allows for high-density circuit designs, saving space on the PCB.
• Stable capacitance over temperature variations due to the X7R dielectric material.
• Reliable performance in demanding environments due to the robust ceramic construction.
• Compliance with RoHS standards makes it suitable for environmentally conscious applications.
• Suitable for high-volume manufacturing due to its compatibility with automated placement equipment.

Additional Details:

The 0402 package size refers to the physical dimensions of the capacitor, which are 0.04 inches by 0.02 inches. The 'B' in the part number indicates the temperature coefficient characteristic, in this case X7R. The '182' represents the capacitance value in picofarads (pF), with the '2' indicating a multiplier of 10^2 (18 x 10^2 = 1800 pF). 'K' denotes the capacitance tolerance of ±10%. The '500' represents the voltage rating of 50V. The X7R dielectric material offers a good balance between capacitance stability and size. Consult the datasheet for precise electrical characteristics, temperature coefficients, and impedance characteristics for optimal design and performance.
