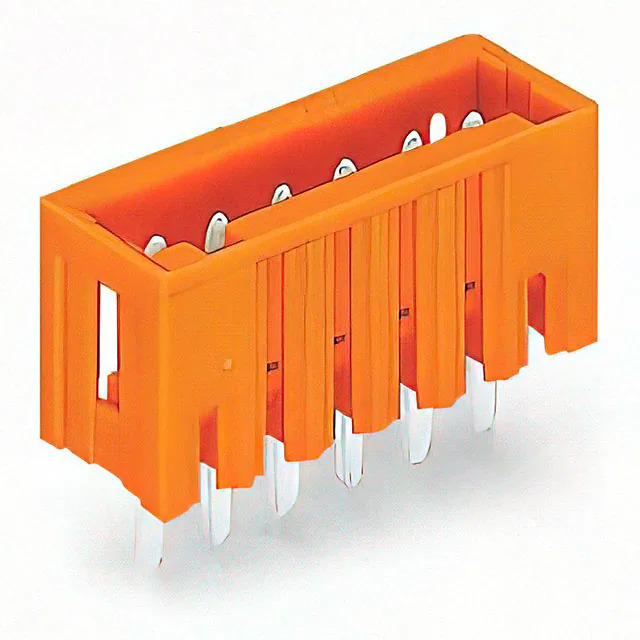

Same model may have multiple batches, images only for reference.

734-236

Name: 734-236
Brand: WAGO Corporation
SKU: 1364627
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	734-236
Manufacturer	WAGO Corporation
Catalog	Headers, Plugs and Sockets
Description	THT MALE HEADER; 1.0 X 1.0 MM SO / 6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	WAGO Corporation
Series	MCSMINI
Package	Box
Product Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	6
Positions Per Level	6
Number of Levels	1
Pitch	0.150" (3.81mm)
Header Orientation	Vertical
Plug Wire Entry	-
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	10A
Voltage - IEC	320 V
Current - UL	10 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	-
Wire Gauge or Range - mm²	-
Color	Orange
Temperature Range - Operating	-60°C ~ 100°C
Contact Mating Finish	Tin
Features	-
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	-
Contact Material	Electrolytic Copper
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Tail Length	0.177" (4.50mm)
Insulation Height	0.406" (10.31mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1364627-734-236
Ultra Librarian 3D Model	Ultra Librarian 734-236 CAD Model

Alternative Products

Description

The 734-236 is a terminal block header from WAGO Corporation's MCSMINI series.

Mounting: Through-Hole
Pitch: 0.150" (3.81mm)
Positions: 6
Color: Orange
Current Rating (IEC): 10A
Current Rating (UL): 10A
Voltage Rating (UL): 300V
Voltage Rating (IEC): 320V
Contact Material: Electrolytic Copper
Housing Material: Polyamide (PA66), Nylon 6/6
Insulation Height: 0.406" (10.31mm)
Contact Tail Length: 0.177" (4.50mm)
Category: Connectors and Interconnects
Status: Active
