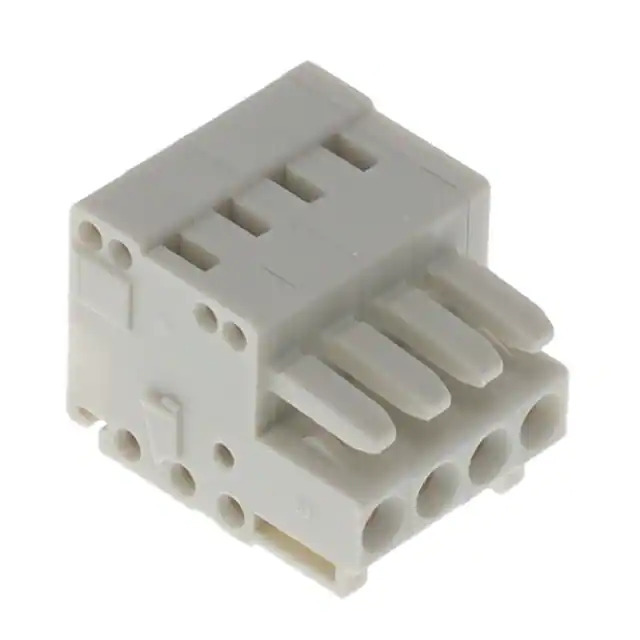

734-104 WAGO Corporation
Same model may have multiple batches, images only for reference.

734-104

Part No 734-104
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description TERM BLOCK PLUG 4POS 3.5MM / 4 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMINI
Package Bulk
Product Status Active
Type Plug, Female Sockets
Number of Positions 4
Positions Per Level 4
Number of Levels 1
Pitch 0.138" (3.50mm)
Header Orientation -
Plug Wire Entry 180°
Termination Style Screwless - Spring Cage, Tension Clamp
Mounting Type Free Hanging (In-Line)
Current - IEC 10A
Voltage - IEC 320 V
Current - UL 10 A
Voltage - UL 300 V
Wire Gauge or Range - AWG 14-28 AWG
Wire Gauge or Range - mm² 0.08-1.5mm²
Color Gray
Temperature Range - Operating -60°C ~ 100°C
Contact Mating Finish Tin
Features Retention Latches (Non-Wire Side)
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length 6-7mm
Contact Material Copper Alloy
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length -
Insulation Height 0.528" (13.40mm)
Base Product Number 734
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1364669-734-104
Ultra Librarian 3D Model Ultra Librarian 734-104 CAD Model

Description

The WAGO Corporation MCSMINI series is a plug with female sockets terminal block.

  • Series: MCSMINI
  • Operating Temperature: -60°C to 100°C
  • Features: Retention Latches (Non-Wire Side)
  • Mounting Type: Free Hanging (In-Line)
  • Color: Gray
  • Number of Positions: 4
  • Insulation Height: 0.528" (13.40mm)
  • Contact Material: Copper Alloy
  • Flammability Rating: UL94 V-0
  • Pitch: 0.138" (3.50mm)
  • Termination Style: Screwless Spring Cage and Tension Clamp
  • Housing Material: Polyamide (PA66) and Nylon 6/6
  • Current Rating (IEC): 10A
  • Current Rating (UL): 10A
  • Voltage Rating (UL): 300V
  • Wire Gauge Range: 14-28 AWG
  • Contact Mating Finish: Tin
