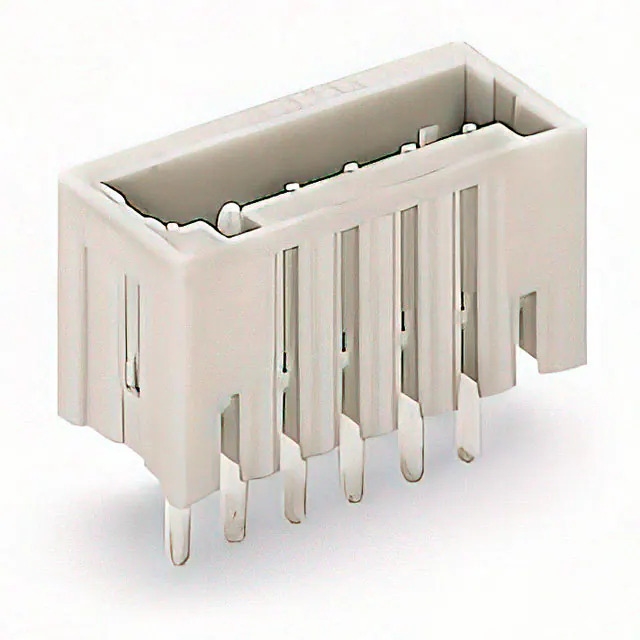

Same model may have multiple batches, images only for reference.
733-332 WAGO Corporation
Same model may have multiple batches, images only for reference.

733-332

Part No 733-332
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description THT MALE HEADER; 0.8 X 0.8 MM SO / 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.098" (2.50mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMICRO
Package Box
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.098" (2.50mm)
Header Orientation Vertical
Plug Wire Entry -
Termination Style Solder
Mounting Type Through Hole
Current - IEC 6A
Voltage - IEC 320 V
Current - UL 4 A
Voltage - UL 150 V
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm² -
Color Gray
Temperature Range - Operating -60°C ~ 100°C
Contact Mating Finish Tin
Features -
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length -
Contact Material Electrolytic Copper
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length 0.181" (4.60mm)
Insulation Height 0.350" (8.89mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364671-733-332
Ultra Librarian 3D Model Ultra Librarian 733-332 CAD Model

Description

The 1364671-733-332 is a header with male pins, shrouded on all four sides from the MCSMICRO series from WAGO.

  • Category: Terminal Blocks, Headers, Plugs & Sockets
  • Series: MCSMICRO
  • Mounting Type: Through Hole
  • Operating Temperature: -60°C to 100°C
  • Color: Gray
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Termination Style: Solder
  • Number of Positions: 2
  • Positions per Level: 2
  • Current Rating (IEC): 6A
  • Current Rating (UL): 4A
  • Voltage Rating (UL): 150V
  • Voltage Rating (IEC): 320V
  • Contact Material: Electrolytic Copper
  • Mating Finish: Tin
  • Product Status: Active
